Automobile

Automation & Inspection Machines for Automotive Components

Explore Denso Tech automobile machines for laser inspection, assembly presses, load and displacement monitoring, rechrome lines, phosphating transporters, and piston pin height inspection.

12 Automobile machines copied from the source catalogue

Products

Automobile Machines

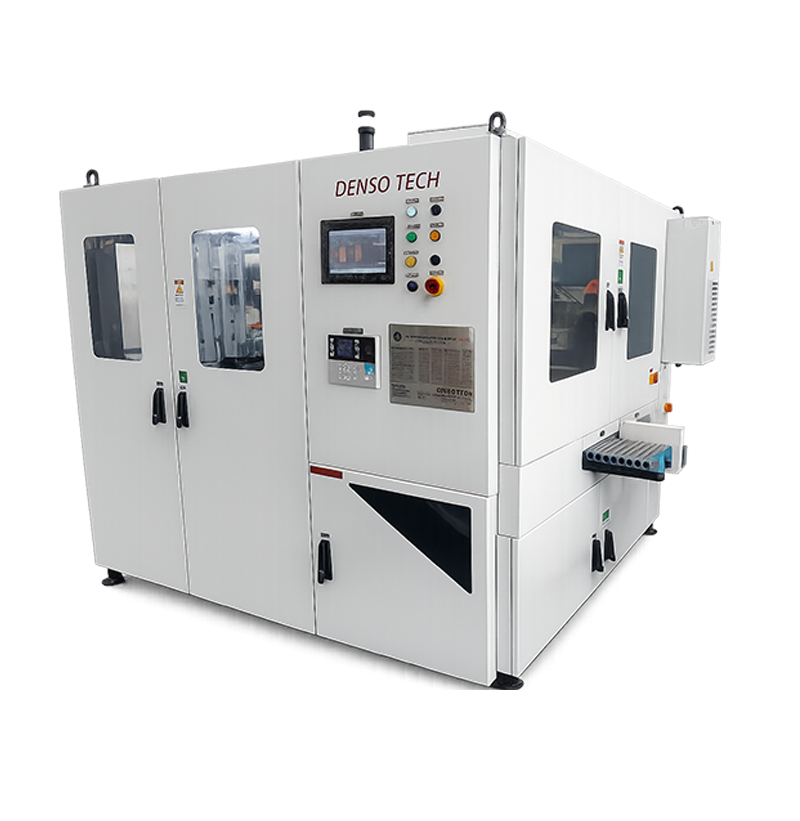

Metal tube measurement and inspection machine

Metal Tube Measurement & Inspection Machine

  • Automatic tube loading and feeding system.
  • Cam-based indexing mechanism.
  • Laser based inspection system.
  • Pneumatic inner-diameter measurement system.
  • PLC-based machine control.
  • HMI touch-screen interface.
  • Recipe storage facility.
  • Automatic OK and NG segregation (up to 5 NG bins).
  • High-speed inspection cycle.
  • Emergency stop and safety interlocks.
  • Suitable for 100% tube inspection.

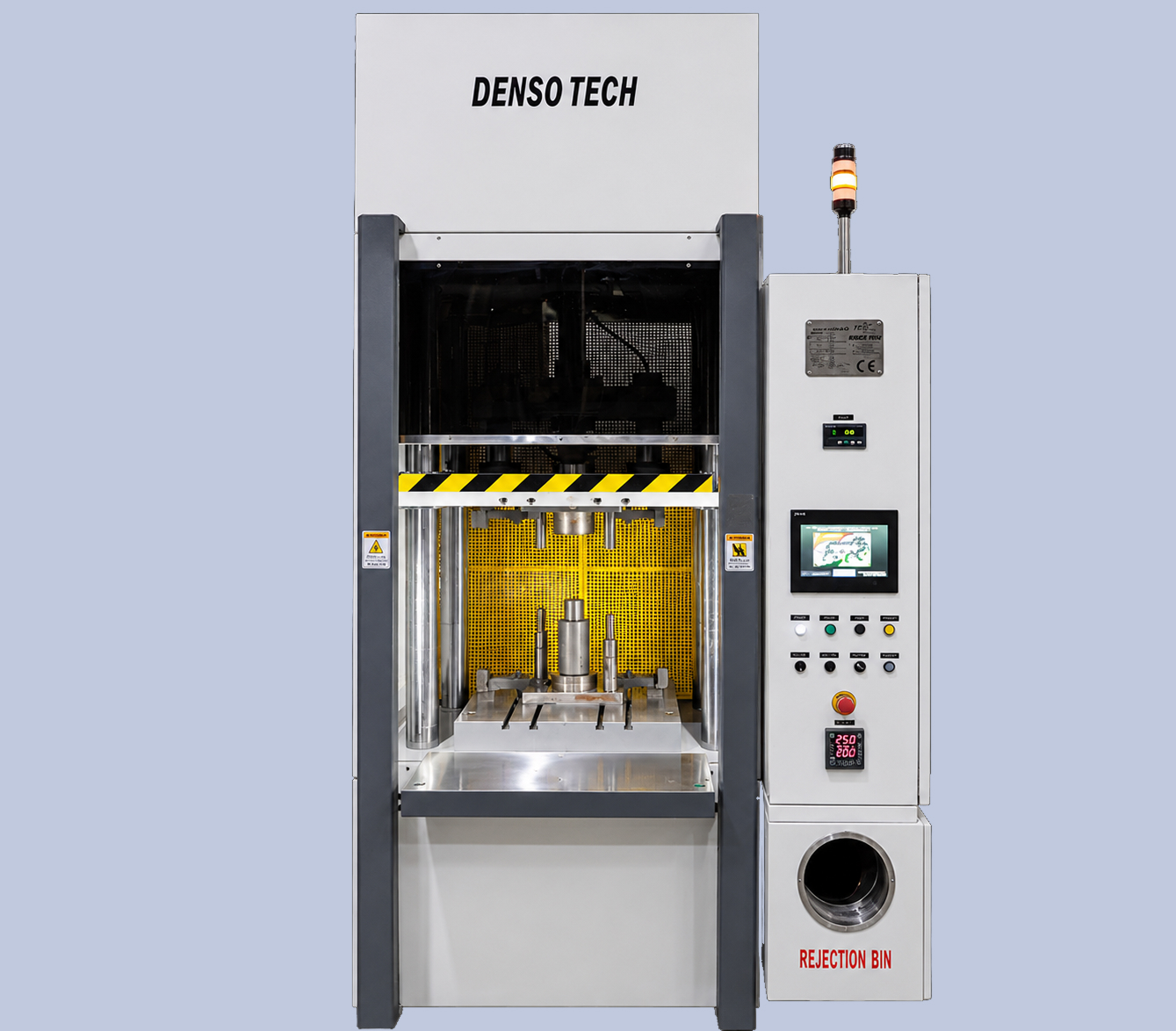

Servo press machine for automotive components

Servo Press Machine with Load & Displacement 5TON, 2TON, 1TON

  • Servo press machine for accurate automotive component assembly.
  • Force, stroke, speed, and cycle parameters can be controlled through HMI.
  • Load and displacement monitoring can be integrated where required.
  • Custom tooling and fixtures designed as per component requirement.
Servo hydraulic press machine for automotive components

Servo Hydraulic Press with Load & Displacement (65TON, 50TON, 30TON, 10 TON)

  • Servo hydraulic press machines for assembly and forming operations.
  • Load and displacement monitoring can be provided for assembly validation.
  • Programmable pressure, speed, and stroke settings through HMI.
  • Safety guarding and light curtain options as per machine requirement.

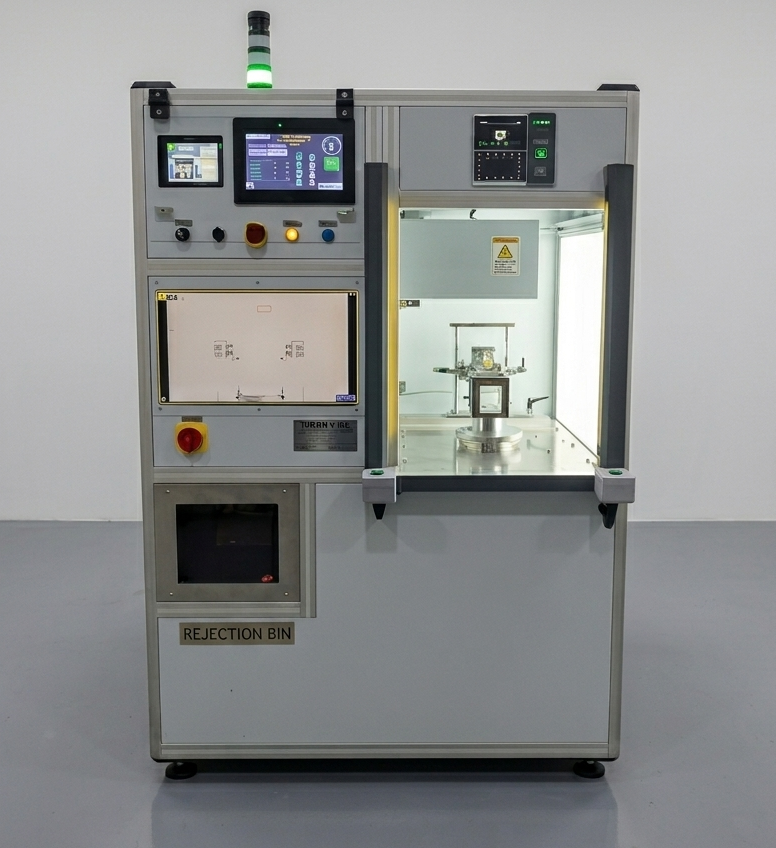

Vision camera inspection machine for automotive components

Vision Camera Inspection Machine

  • Camera based inspection for component orientation, presence, size, or surface checks.
  • Can be integrated with automatic feeding, indexing, and rejection systems.
  • Suitable for online or standalone inspection applications.
  • Production counters and OK/NG result handling available through HMI.

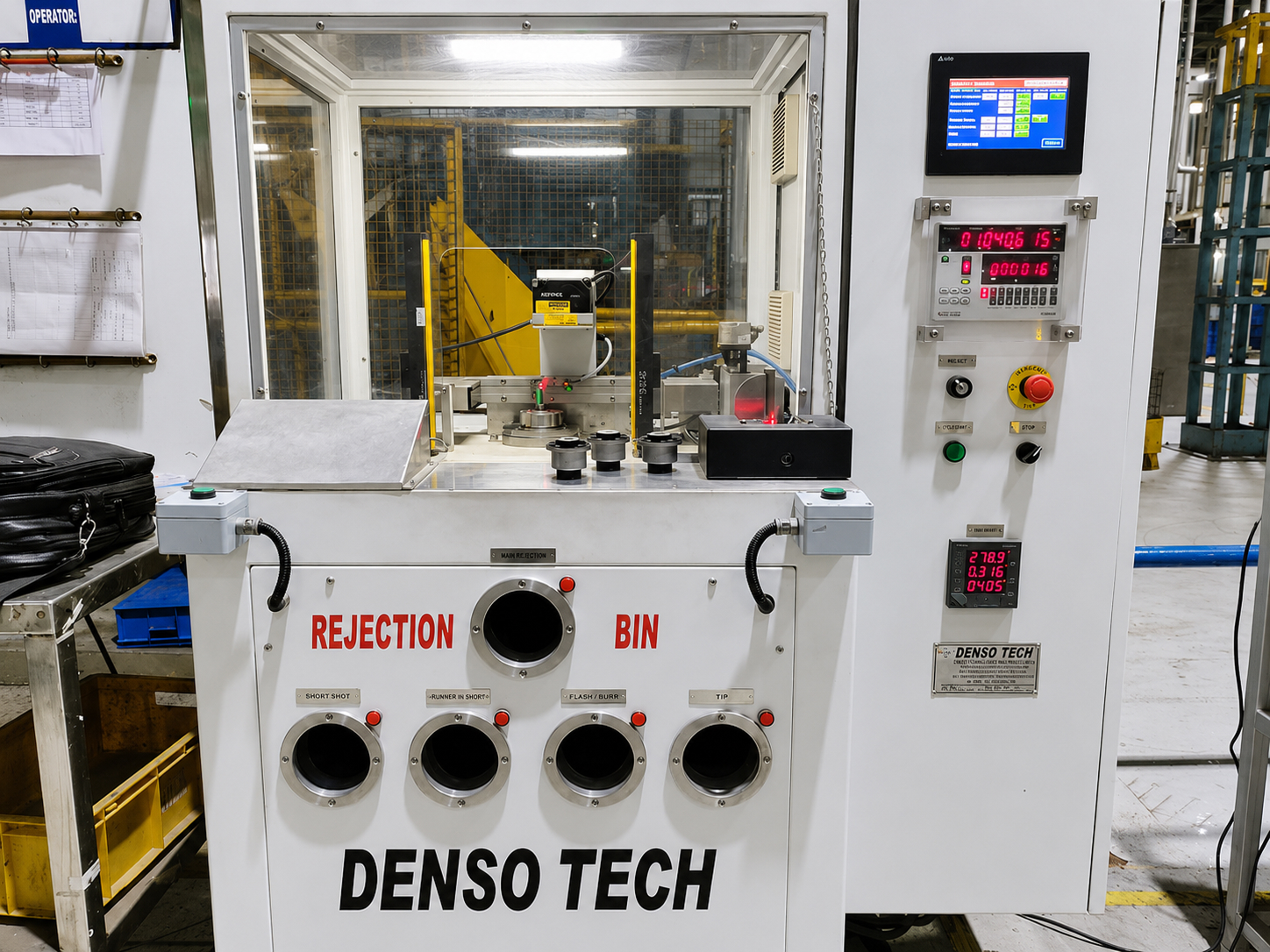

Laser based inspection machine for automotive components

Laser Based Inspection MC for Automotive Components With Ok Marking

  • Internal Diameter (with GO-NOGO gauge installed on machine)
  • Outer Diameter (Least Count 0.001mm) (Range min. 35mm to max. 61mm)
  • Ovality (Least Count 0.001mm)
  • Concentricity (Least Count 0.001mm)
  • Total Height (Least Count 0.01mm)
  • Step (Least Count 0.01mm)
  • Serration (Least Count 0.01mm)

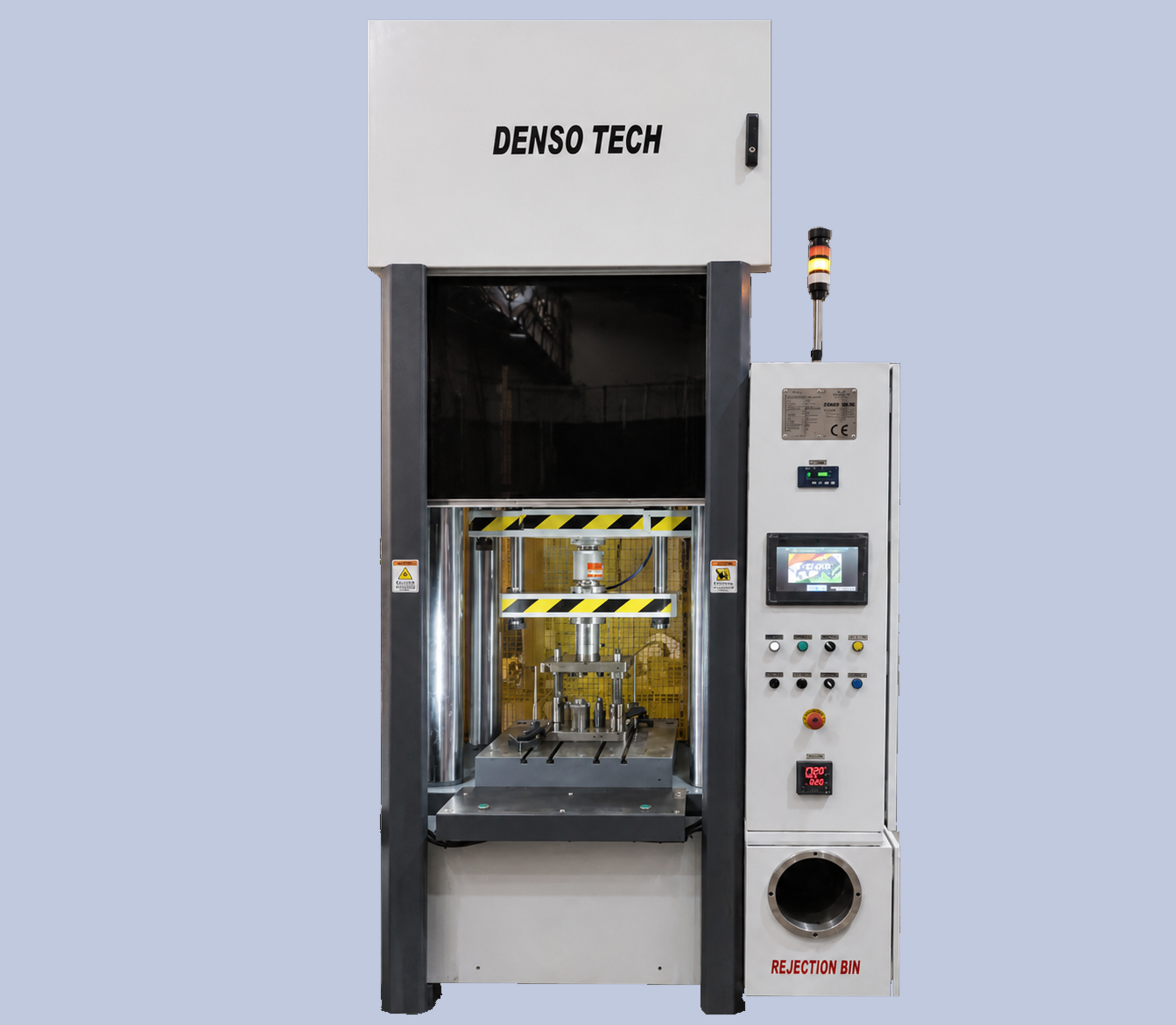

Assembly press 65 ton for automotive parts

Assembly Press 65 Ton for Automotive Parts with Load & Displacement Monitoring

  • Risk Assessment & this machine is Done as per ISO 12100.
  • Machine Design As per ISO 13849-1.
  • Machine is as per the standard EN 16092-1, EN 16092-3, EN 60204-1.
  • Capacity 65 Ton.
  • Rapid Speed 250mm/sec .
  • Feed Speed 25mm/ sec.
  • Swiss Make Load Cell.
  • Linear Transducer.
  • Mitsubishi Make PLC & HMI.
  • Sick make Safety Category 4 Light Curtain.
  • Cycle Time 4 seconds.
Auto assembly press 30 ton for automotive parts

Auto Assembly Press 30 Ton for Automotive Parts with Load & Displacement Monitoring

  • Risk Assessment & this machine is Done as per ISO 12100.
  • Machine Design As per ISO 13849-1.
  • Machine is as per the standard EN 16092-1, EN 16092-3, EN 60204-1.
  • Capacity Upto 30 Ton ( Adjustable can be set via Touch Screen) .
  • Capacity Upto 30 Ton ( Adjustable can be set via Touch Screen) .
  • Feed Speed 25mm/ sec ( Variable can be set via Touch Screen) .
  • Acceleration and Deceleration feature.
  • Swiss Make Load Cell.
  • Linear Transducer.
  • Mitsubishi Macke PLC & HMI.
  • Sick make Category 4 Safety Light Curtain Sensor.
  • Variable Displacement Hydraulic Pump with Proportional Valves for Pressure and Flow Control.

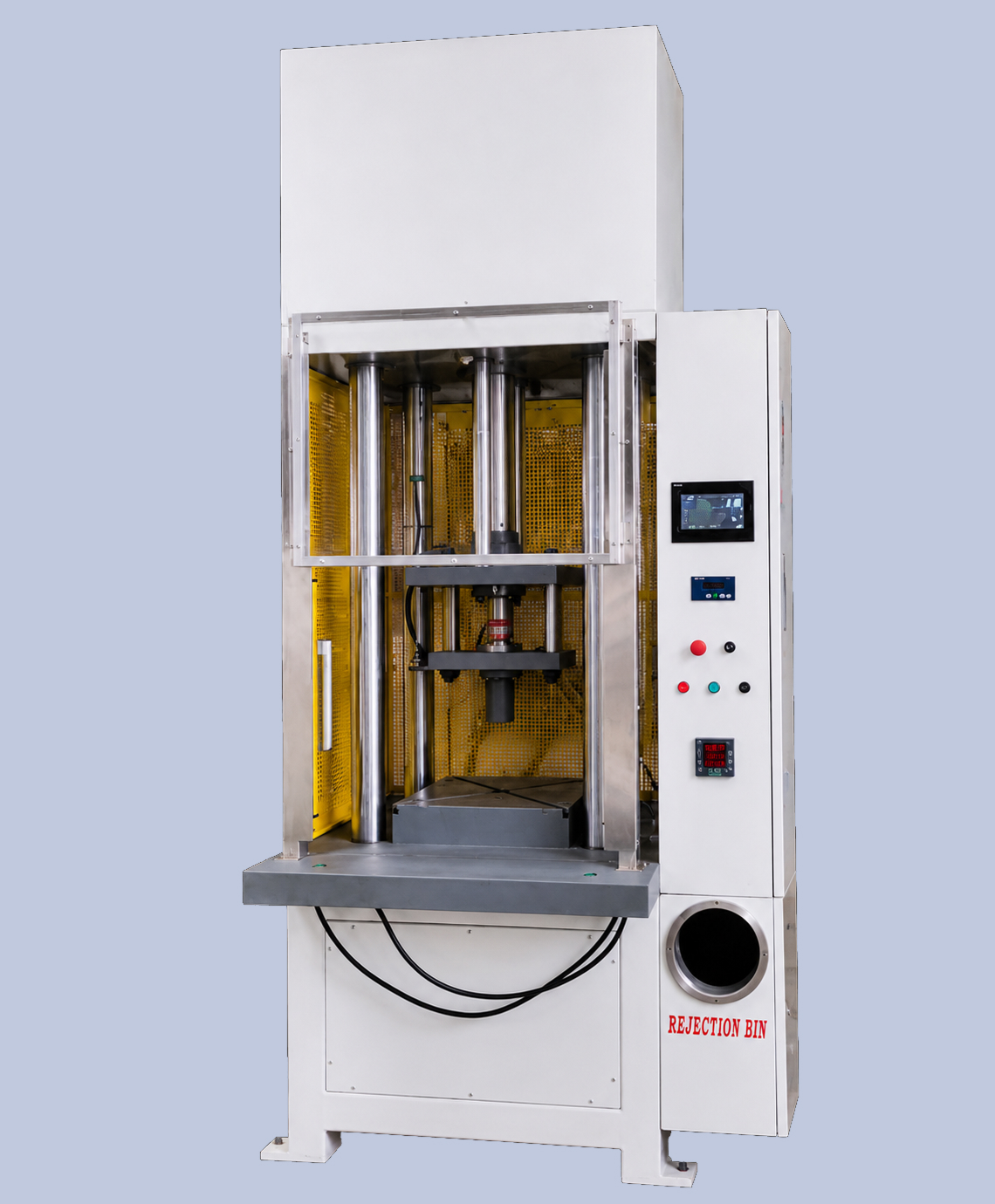

Auto assembly press 20 ton for automotive parts

Auto Assembly Press 20 Ton for Automotive Parts with Load & Displacement Monitoring at Multiple Position.

  • It gives Load data of automotive part with respect to displacement at multiple positions of interference fit
  • This machine has been installed with Cat 4 safety curtains.
  • Machine has 2 different feed rates, to increase the productivity.
  • This machine also displays graph of load vs displacement data of every component.

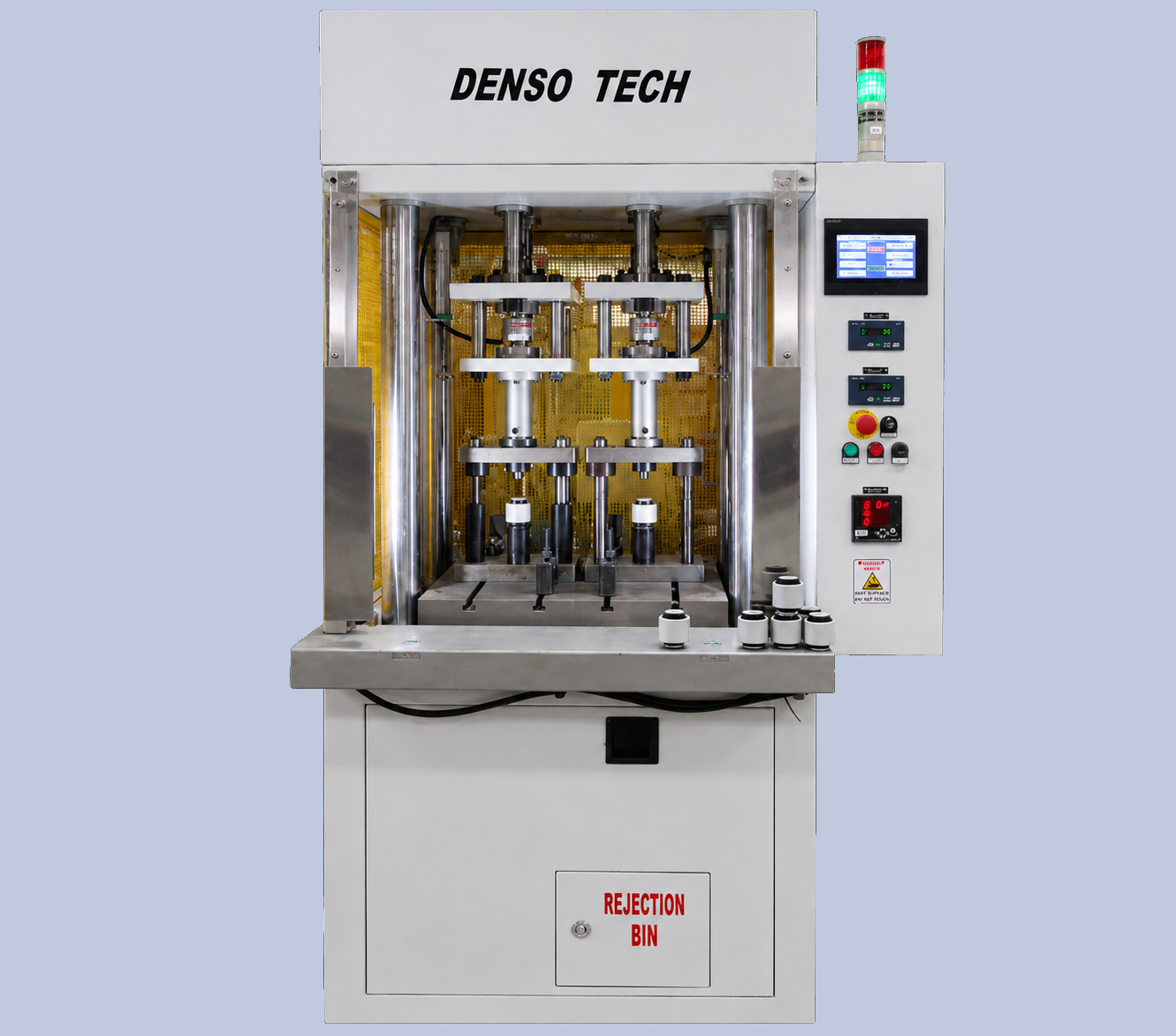

Double station auto assembly press 4 ton for automotive part

Double Station Auto Assembly Press 4 Ton for Automotive Part with Load & Displacement Monitoring at Multiple Position

  • This machine is double station 4 Ton assembly press with having load & displacement monitoring feature.
  • Both stations can be operated at same time.
  • It gives Load data of automotive part with respect to displacement at multiple positions of interference fit.
  • This machine has been installed with Cat 4 safety curtains.
  • Machine has 2 different feed rates, to increase the productivity.
  • This machine even gives graph of load vs displacement of every component.
  • Machine has also has auto marking assembly, which does marking on OK pcs.

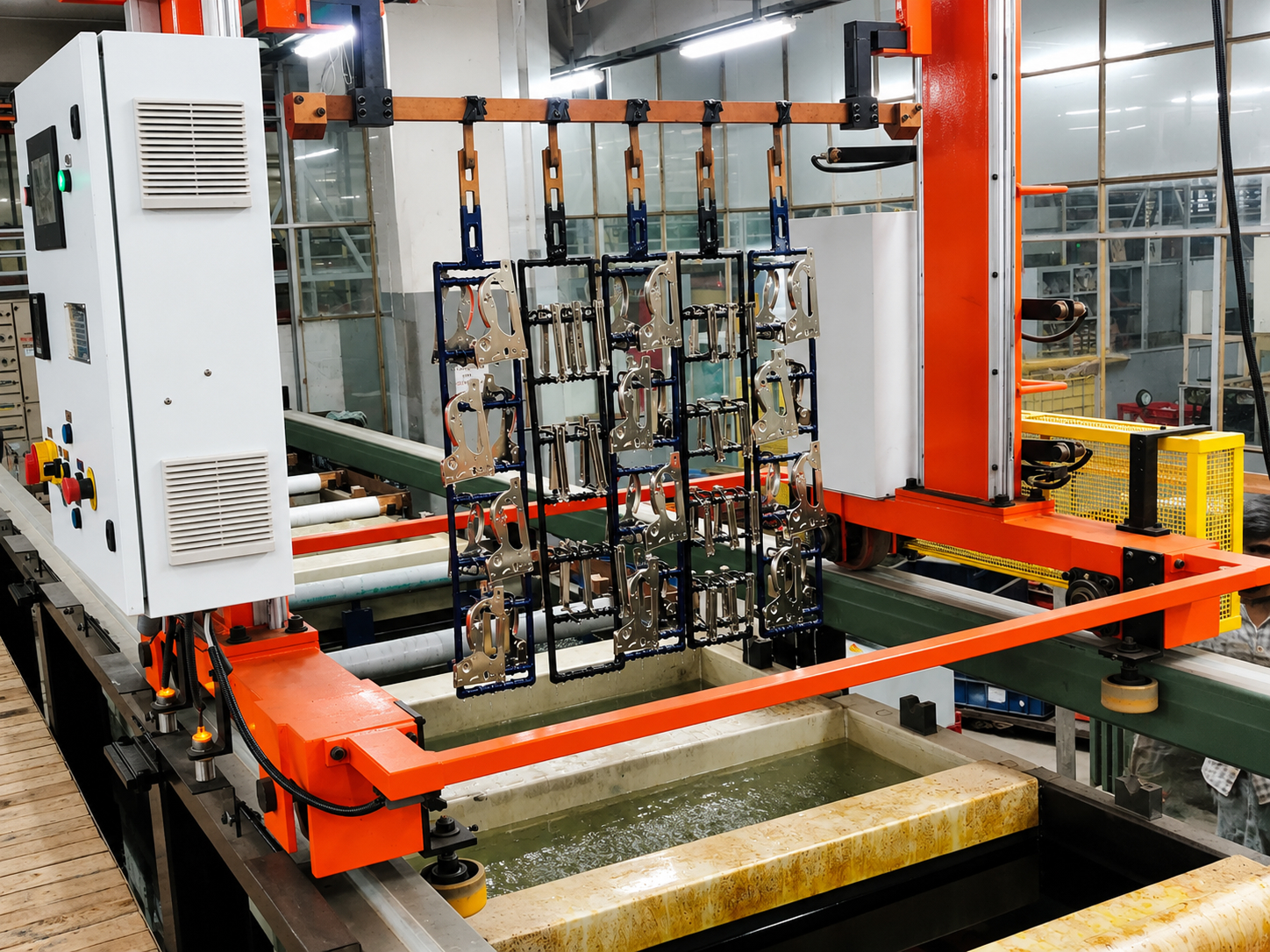

Fully automatic rechrome line

Fully Automatic Rechrome Line

  • 13 Tanks .
  • Machine Design As per ISO 13849-1.
  • MS Tank With Rubber.
  • PP Tank.
  • SS Tank.
  • Automatic Transporter.
  • All Controls on HMI.
  • Process parameters can be checked and monitored through HMI

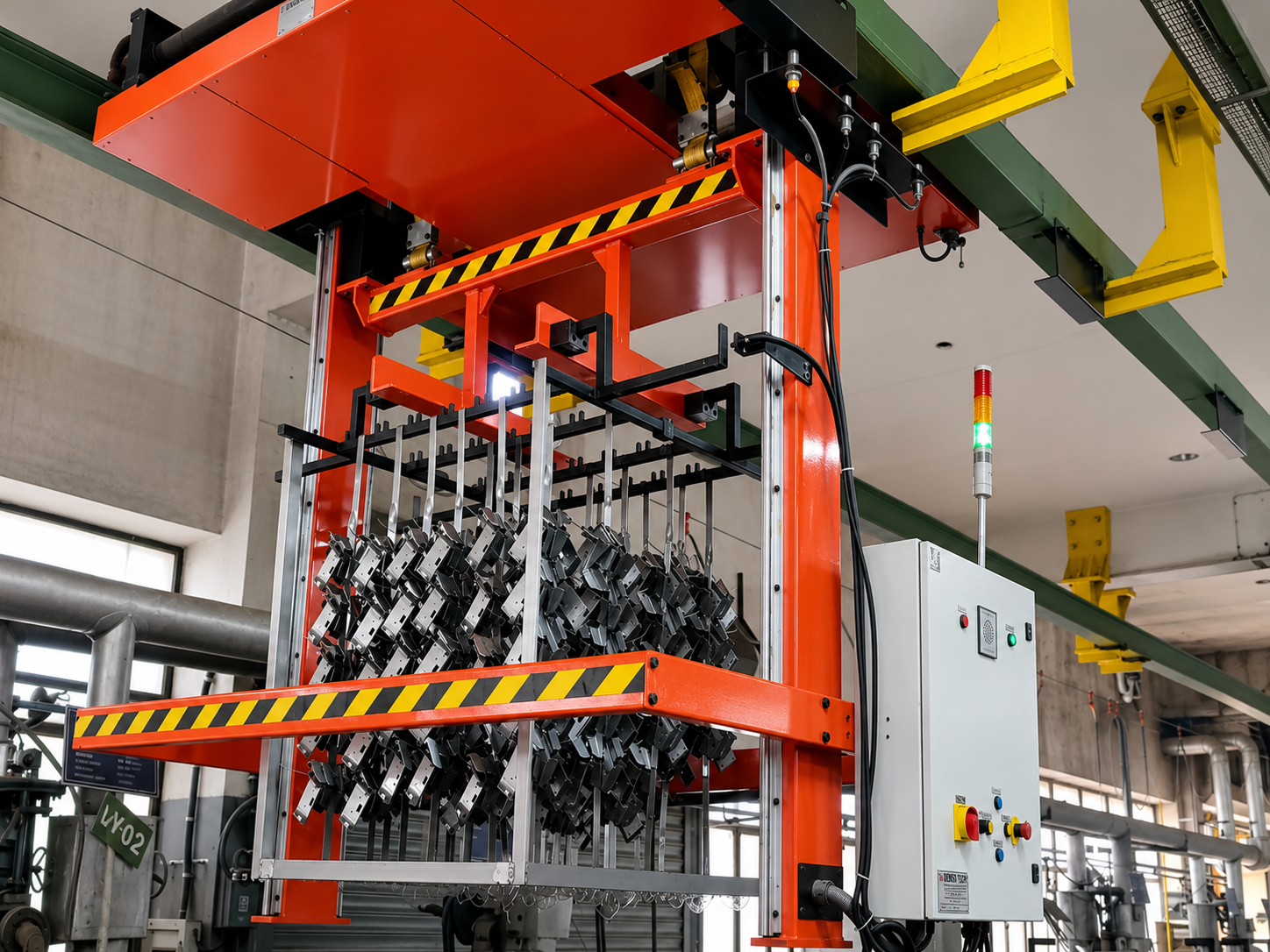

Automatic transporter for phosphating line

Automatic Transporter for Phosphating Line

  • Overhanging Transporter.
  • Meet challenge of uneven height of existing Tanks.
  • 13 Tanks.
  • MS Tank With Rubber.
  • PP Tank.
  • SS Tank.
  • Automatic Transporter
  • All Controls on HMI
  • Process parameters can be checked and monitored through HMI

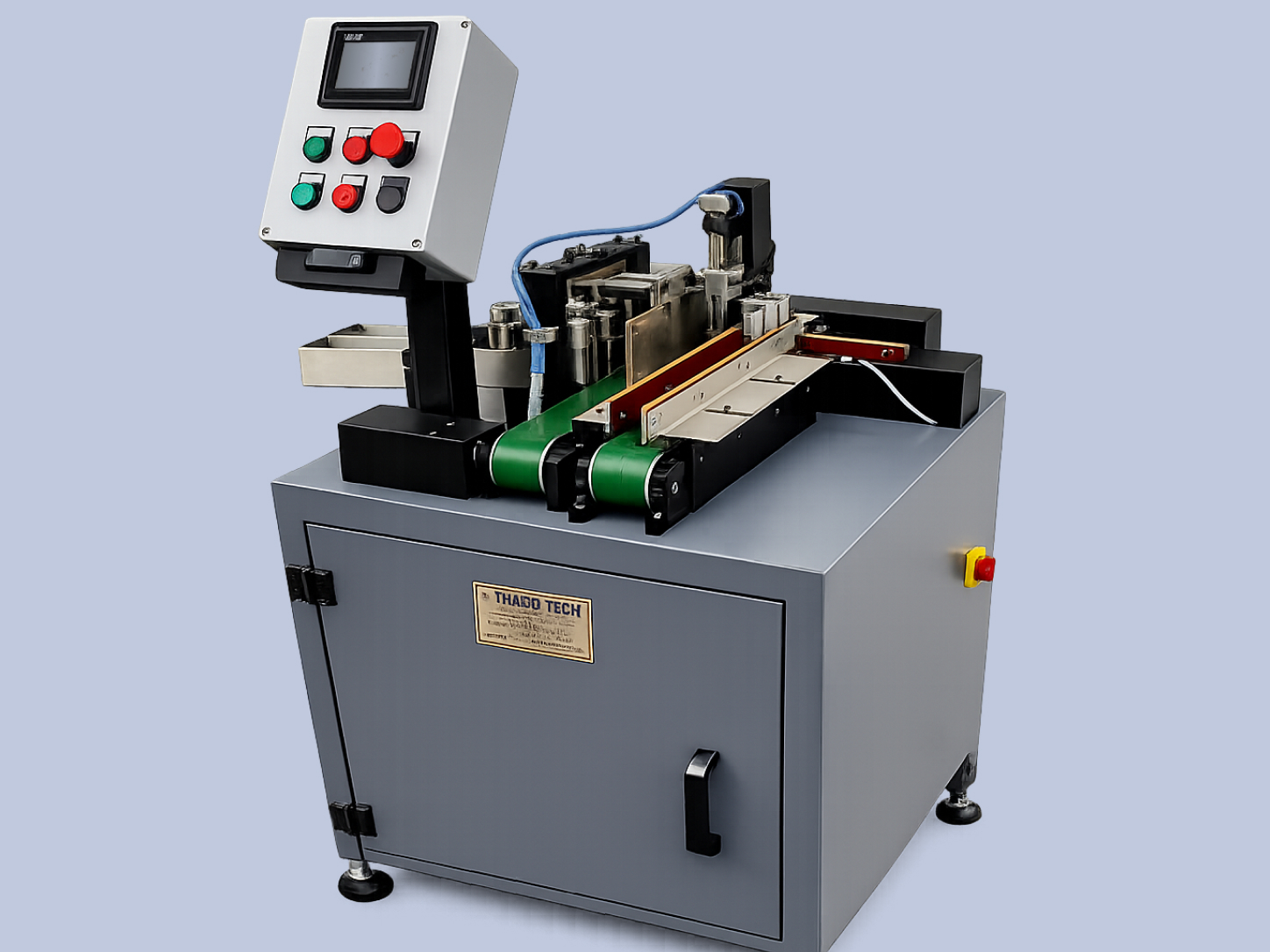

High speed height inspection machine of engine piston pins

High Speed Height Inspection Machine of Engine Piston Pins

  • Height Inspection of Piston Parts.
  • Accuracy upto 0.02 mm.
  • Cycle Time 20 pcs/min.
  • Separate Chute for ok parts, High (NG ) Part, Low (NG ) Part.
