Rubber Bush

Rubber Bush Assembly, Pressing & Inspection Machines

Explore Denso Tech machines for rubber bush adhesion testing, automatic nutrunner and vision inspection, creep testing, automatic engraving, process heating, and integrated quality control.

9 Rubber bush machines with targeted sections

Products

Rubber Bush Machines

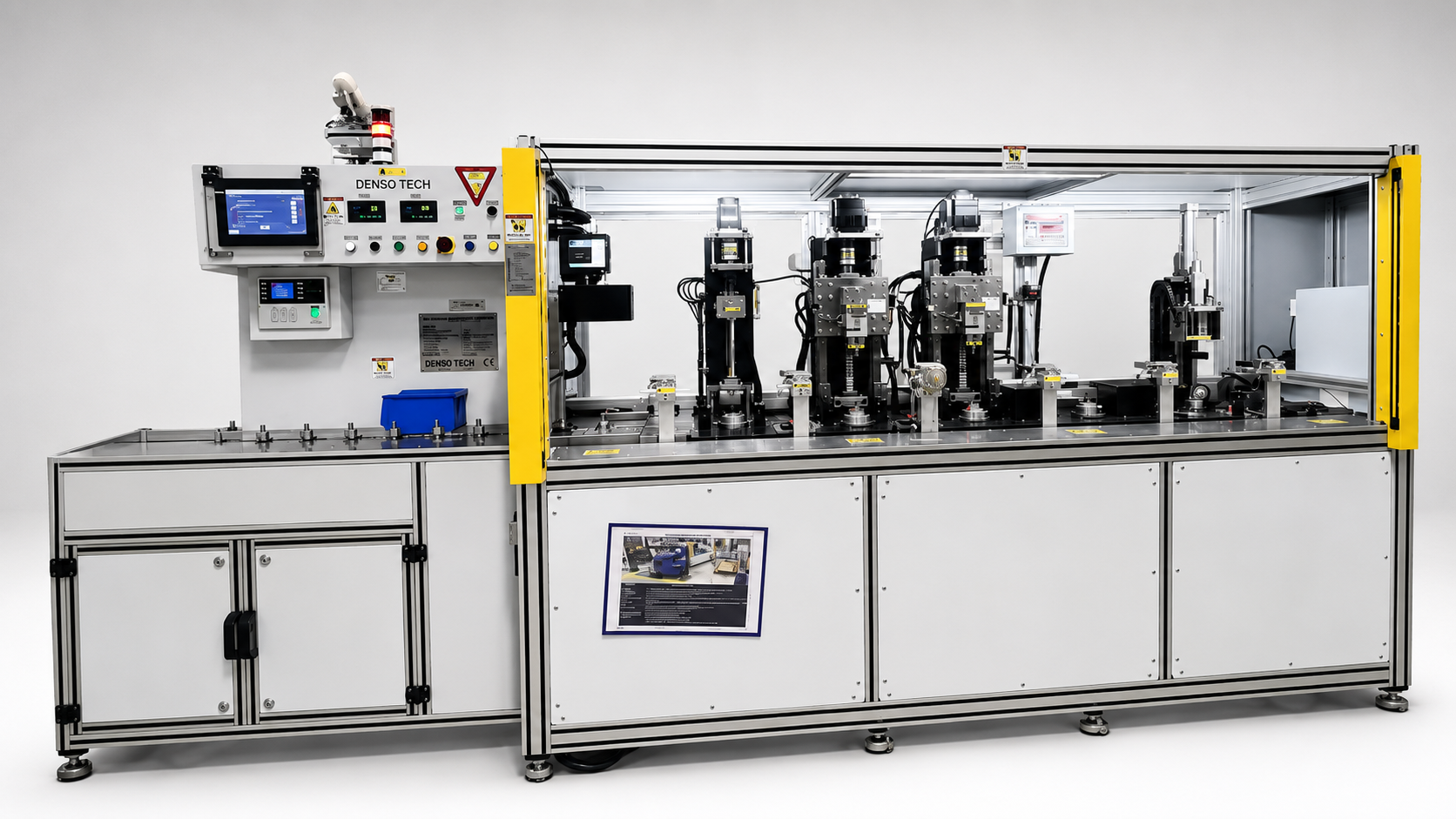

Automatic inspection line for rubber bushes

Automatic Inspection Line for Rubber Bushes

  • High-precision dimensional inspection for inner and outer diameter, height, ovality, concentricity, steps, and serrations.
  • Dual-side adhesion and proof-load testing with IV4 vision-based Poka-Yoke inspection.
  • Automated marking, barcode labeling, data logging, and dedicated NG-part segregation.
  • Six-second cycle time with Category 4 light-curtain safety.

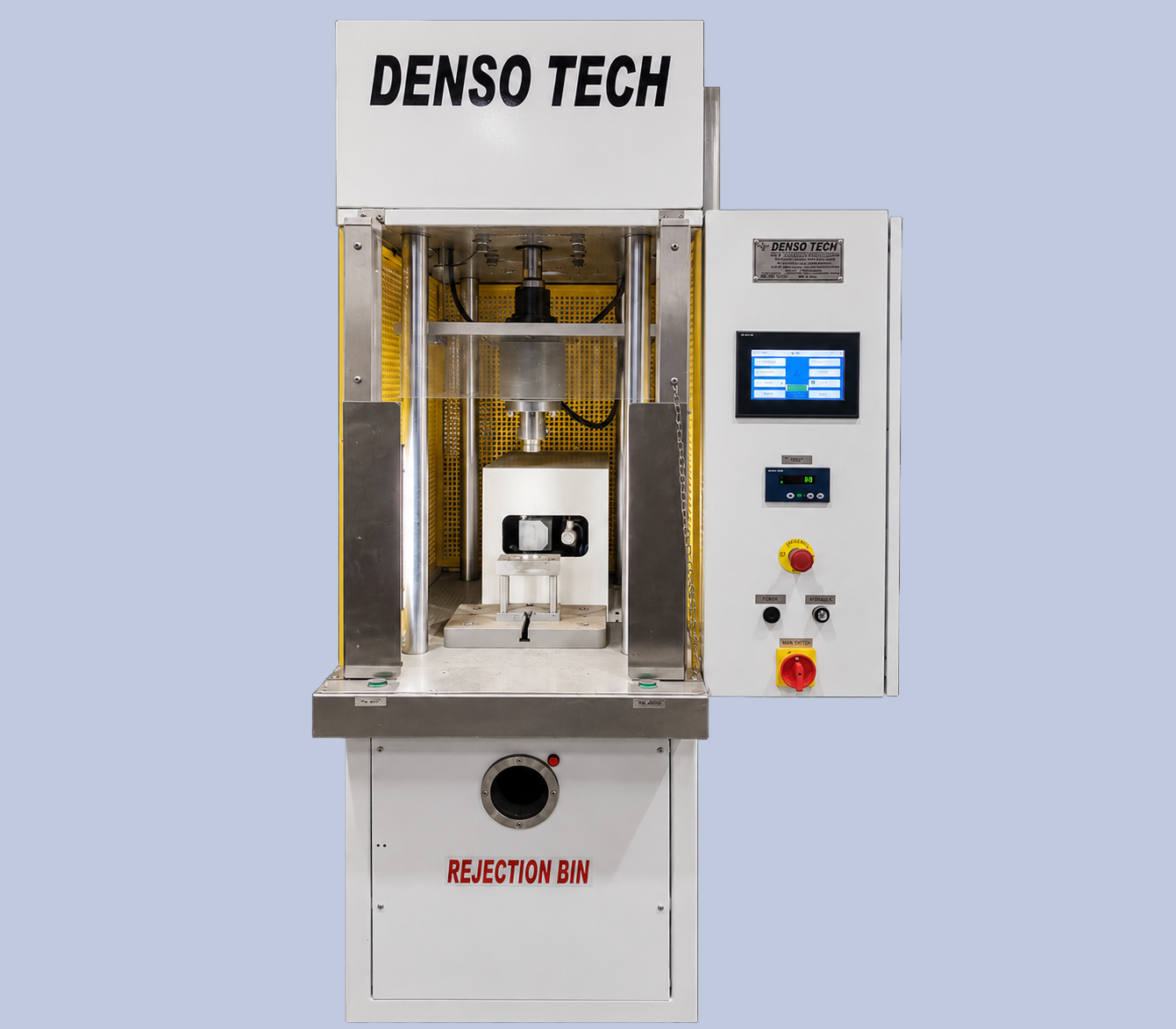

Adhesion testing machine for rubber bush

Adhesion (Proof Load) Testing Machine

  • Proof load and adhesion testing for rubber bonded components.
  • Load cell and linear transducer based measurement options.
  • OK/NG result handling with rejection control.
  • Custom capacity and fixtures available for different rubber bush parts.

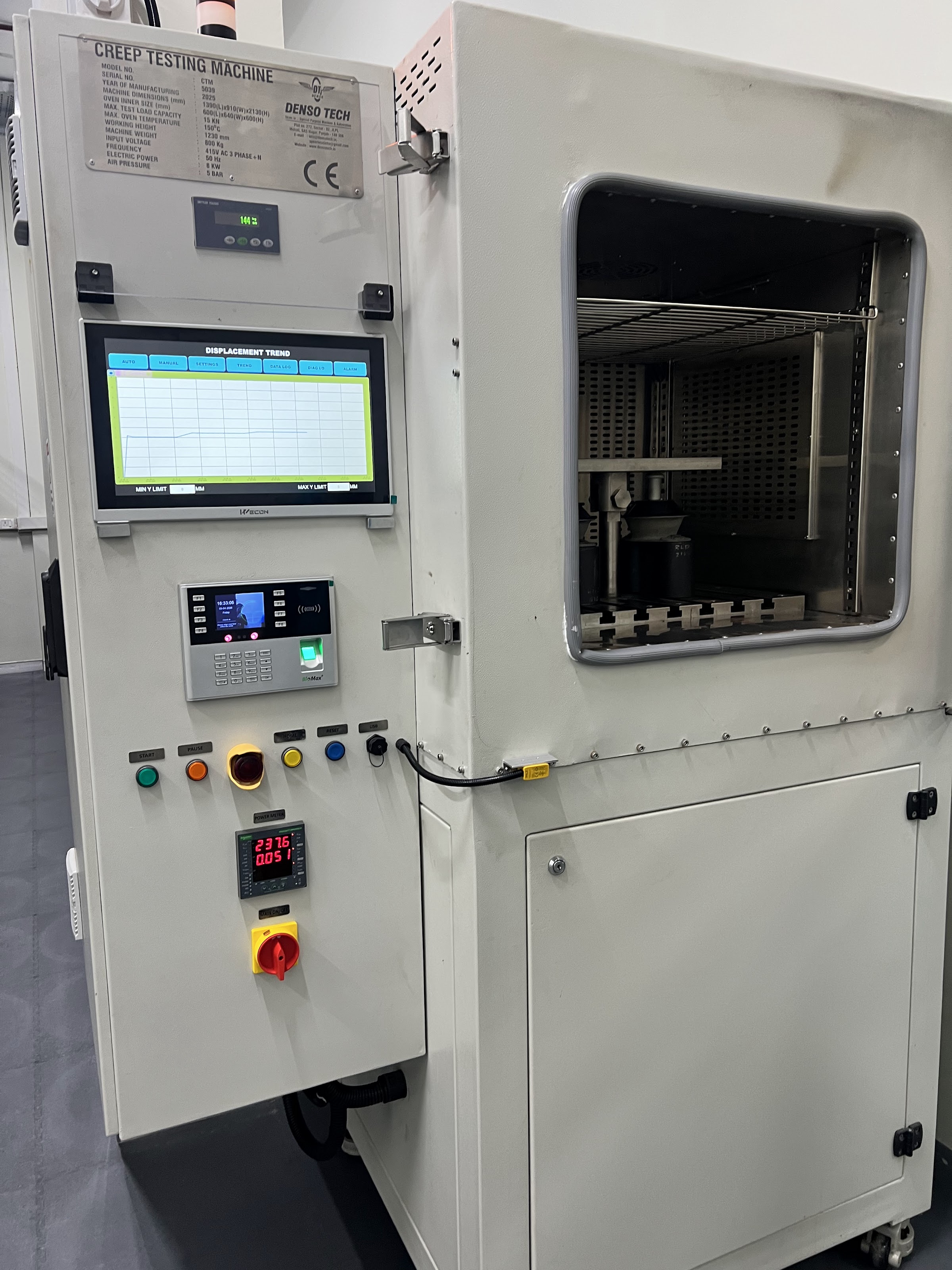

Creep testing machine

Creep Testing Machine

  • Designed for controlled creep or endurance testing of components.
  • Custom loading arrangement based on product geometry and test method.
  • Time, load, displacement, and result monitoring can be configured.
  • PLC and HMI based operation with alarms and status display.

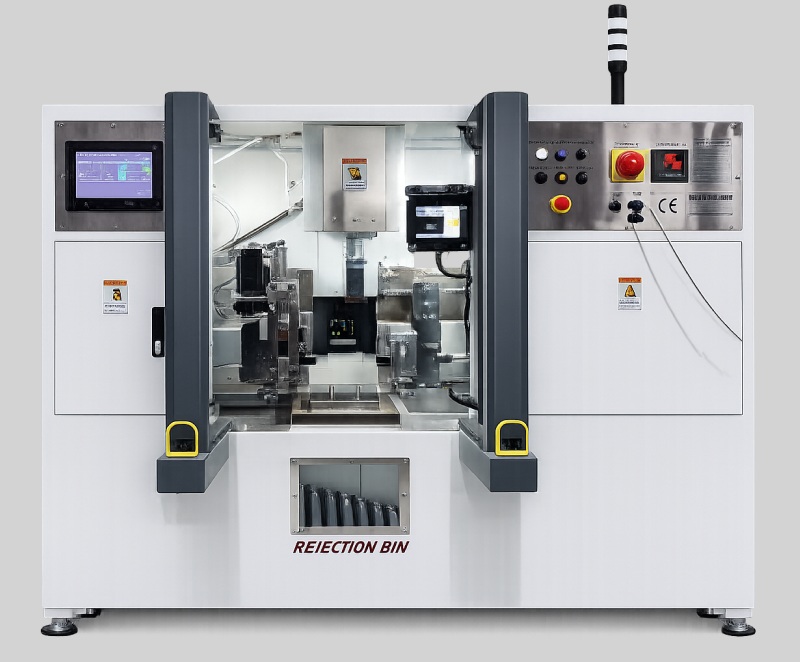

Servo assembly machine with nutrunner

Servo Assembly Machine with Nutrunner

  • Horizontal servo assembly press with four servo heads.
  • Four child-part assembly process.
  • Vision camera testing before and after assembly.
  • CE-certified system with the latest safety devices.
  • Atlas Copco horizontal-type nutrunner.
  • Automatic transfer of NG parts to the rejection bin.

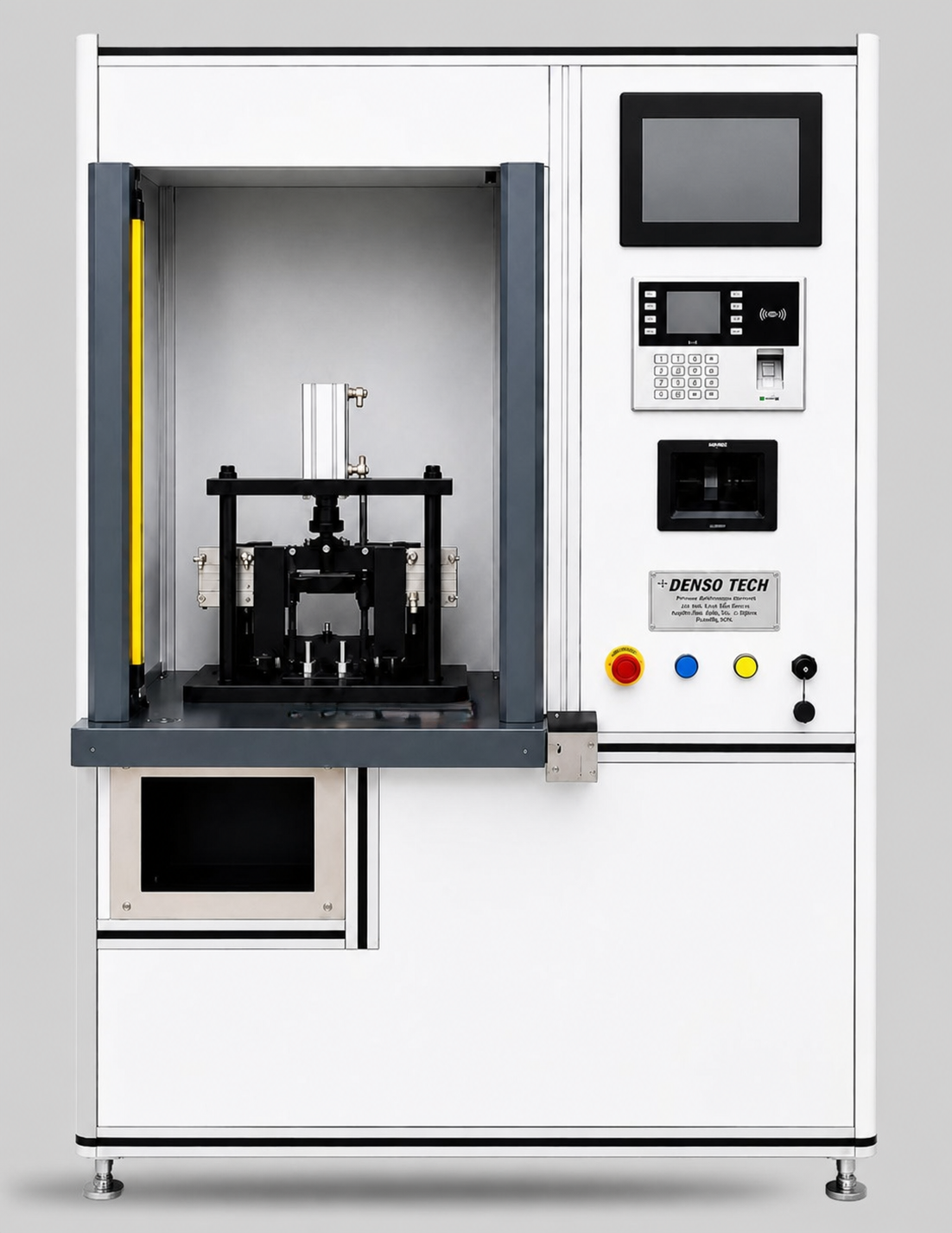

Rubber part assembly machine with vision inspection

Rubber Part Assembly Machine with Vision Inspection

  • Recipe management and production data logging.
  • Vision-based pre-assembly and post-assembly quality inspection.
  • Pressure-monitored pneumatic assembly system.
  • Safety light curtain and automatic reject-bin interlock.

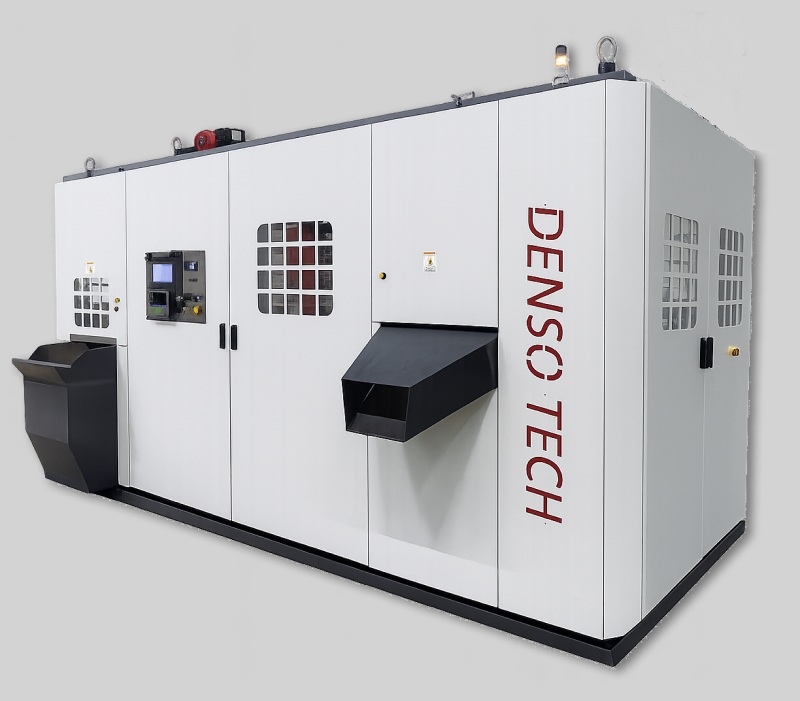

Automatic oiling and hot spin drying machine

Automatic Oiling & Hot Spin Drying Machine

  • Automatic gantry transfer with uniform oiling of rubber parts.
  • Automatic spin drying with adjustable oiling time, speed, and drying time.
  • PLC operation, HMI touch-screen control, and recipe storage.
  • Oil-level monitoring, safety interlocks, and motor protection.

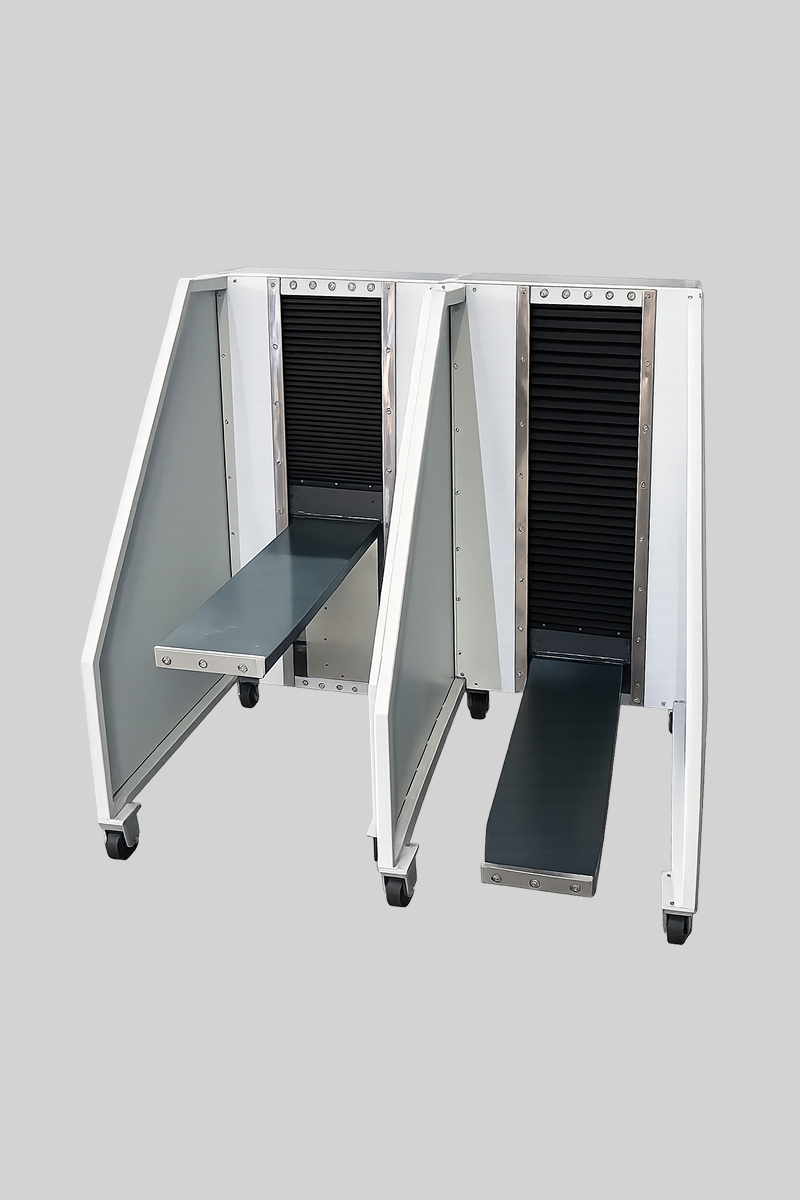

Industrial working tables and bin lifters

Working Tables & Bin Lifters

  • Adequate lifting capacity with adjustable lifting height.
  • Stable supporting frame and mechanical safety lock.
  • Emergency stop, overload protection, and limit switches.
  • Low-maintenance design with mobile or fixed installation options.

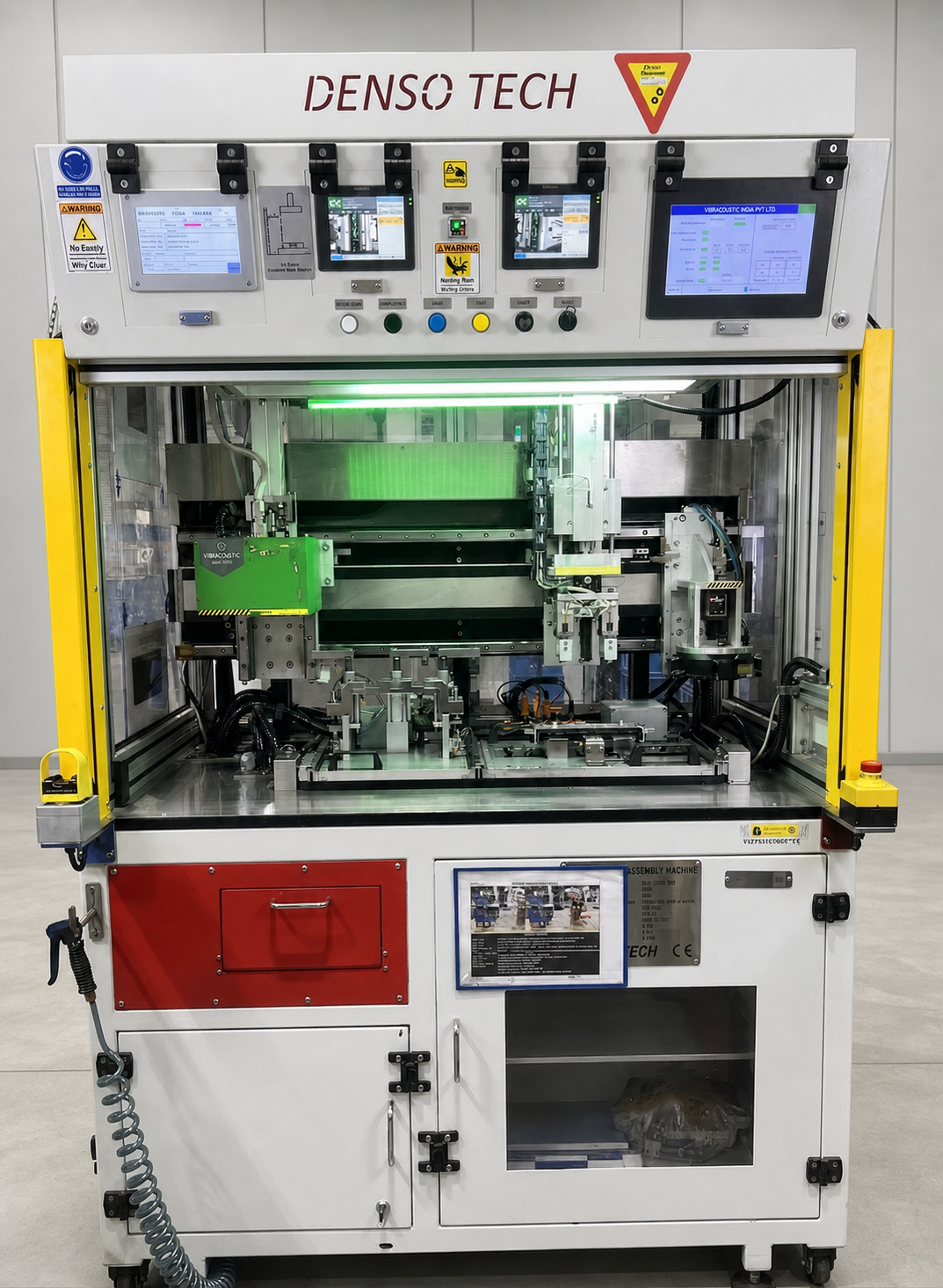

Automatic engraving assembly and inspection machine

Automatic Engraving, Assembly & Inspection Machine

  • Integrated machine for assembly, engraving or marking, and inspection.
  • Custom fixtures and stations designed around the component sequence.
  • Vision, sensor, load, or displacement checks can be integrated.
  • Separate OK and NG handling with rejection control.

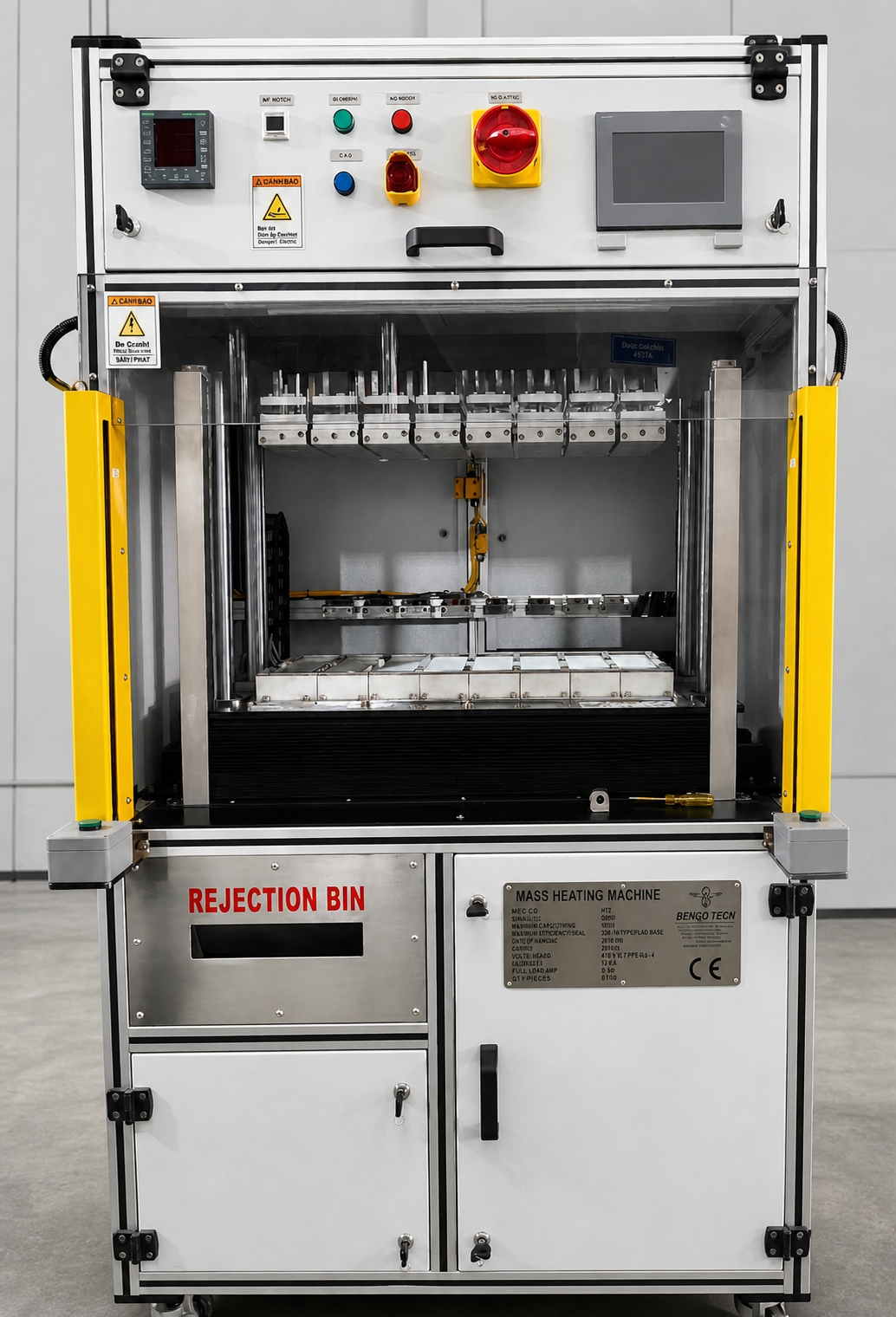

Mass heater for metal parts before rubber moulding

Mass Heater for Metal Parts Before Rubber Moulding

  • Custom heating system designed around the component and process requirement.
  • Controlled temperature zones and cycle timing as per application need.
  • PLC and HMI based machine control.
  • Suitable for line integration with loading, unloading, and inspection stations.
