Precision Machines for Glass Labware Production

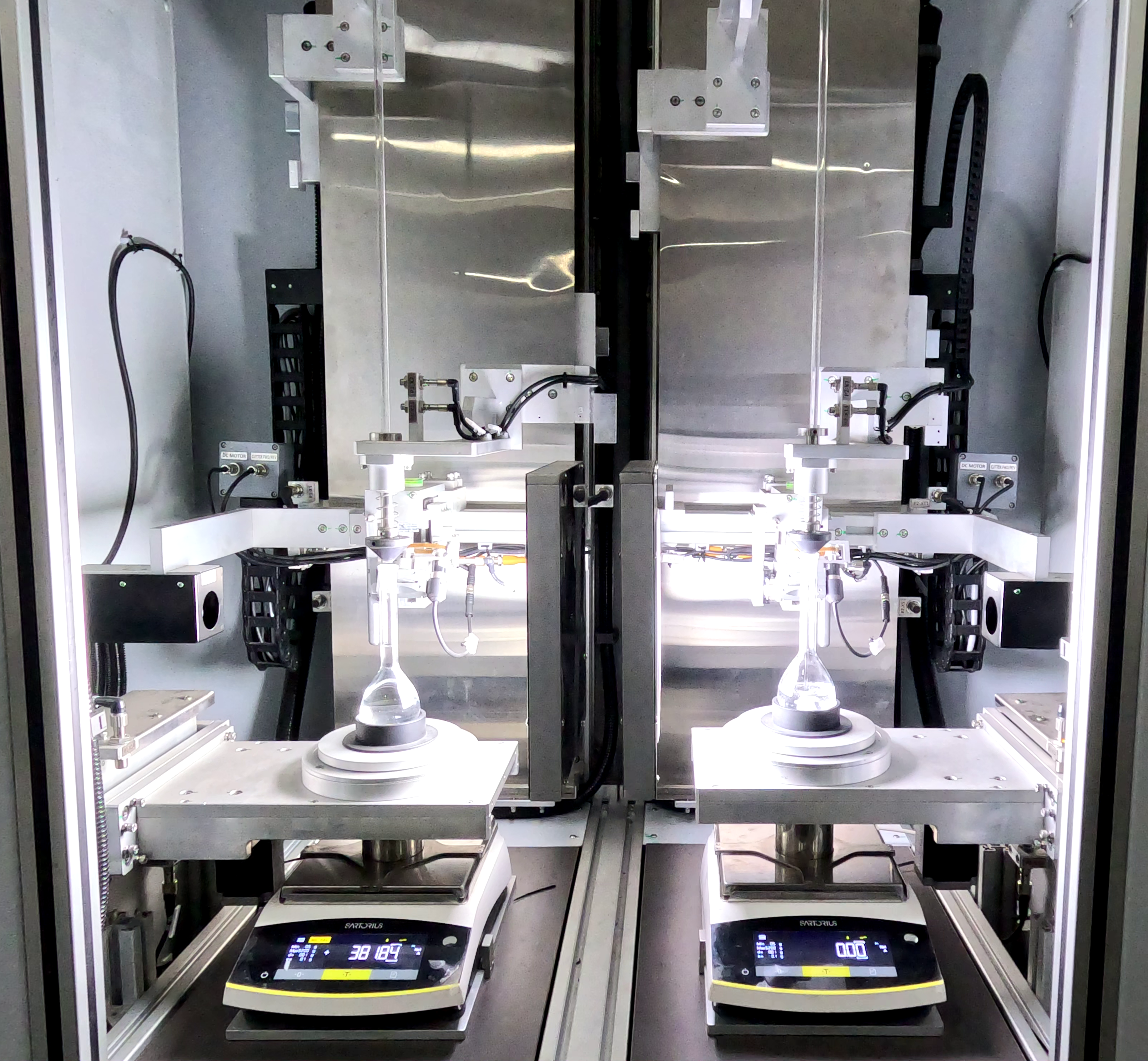

Volumetric Flask Calibration Gen 5

Fully automatic two-station calibration machine for volumetric flasks and measuring cylinders with vision systems, environmental correction, traceability, and remote diagnostics.

Key Features

• Two Working Stations: Equipped with alternating stations for continuous 24/7 operation.
• Vision Systems: Features 2 Vision Camera Systems for enhanced accuracy and meniscus saving.
• Automated Handling: Automatically places flasks/cylinders on the weighing balance and performs auto-tare functions.
• Marking Options: Provides scratch mark, color mark, and pen mark provisions.
• Environmental Sensors: Includes water temperature, air temperature, and humidity sensors for automatic calculation correction.
• Traceability: Fully automatic process with automatic data logging of water weight and temperature to Excel files.
• Remote Support: Internet-enabled control system for remote diagnostics.

Technical Capabilities

• Range: Calibrates 5mL to 2000mL volumetric flasks and measuring cylinders.
• Flask Compliance: ASTM E288, ISO 1042, GB/T 12806 (Class A & B).
• Cylinder Compliance: ASTM E1272, ISO 4788, GB/T 12893 (Class A & B).
• Production Speed (Class A Flask) up to 50mL: 210 pc/hr.
• Production Speed (Class A Flask) 100mL: 180 pc/hr.
• Production Speed (Class A Flask) 2000mL: 40 pc/hr.

Key Advantages

• Recalibration: Supports recalibrating flasks and cylinders even after they have been marked.
• Efficiency: High speed with a single operator able to manage both stations.
• Accuracy: Eliminates manual calculation errors and ensures high repeatability.

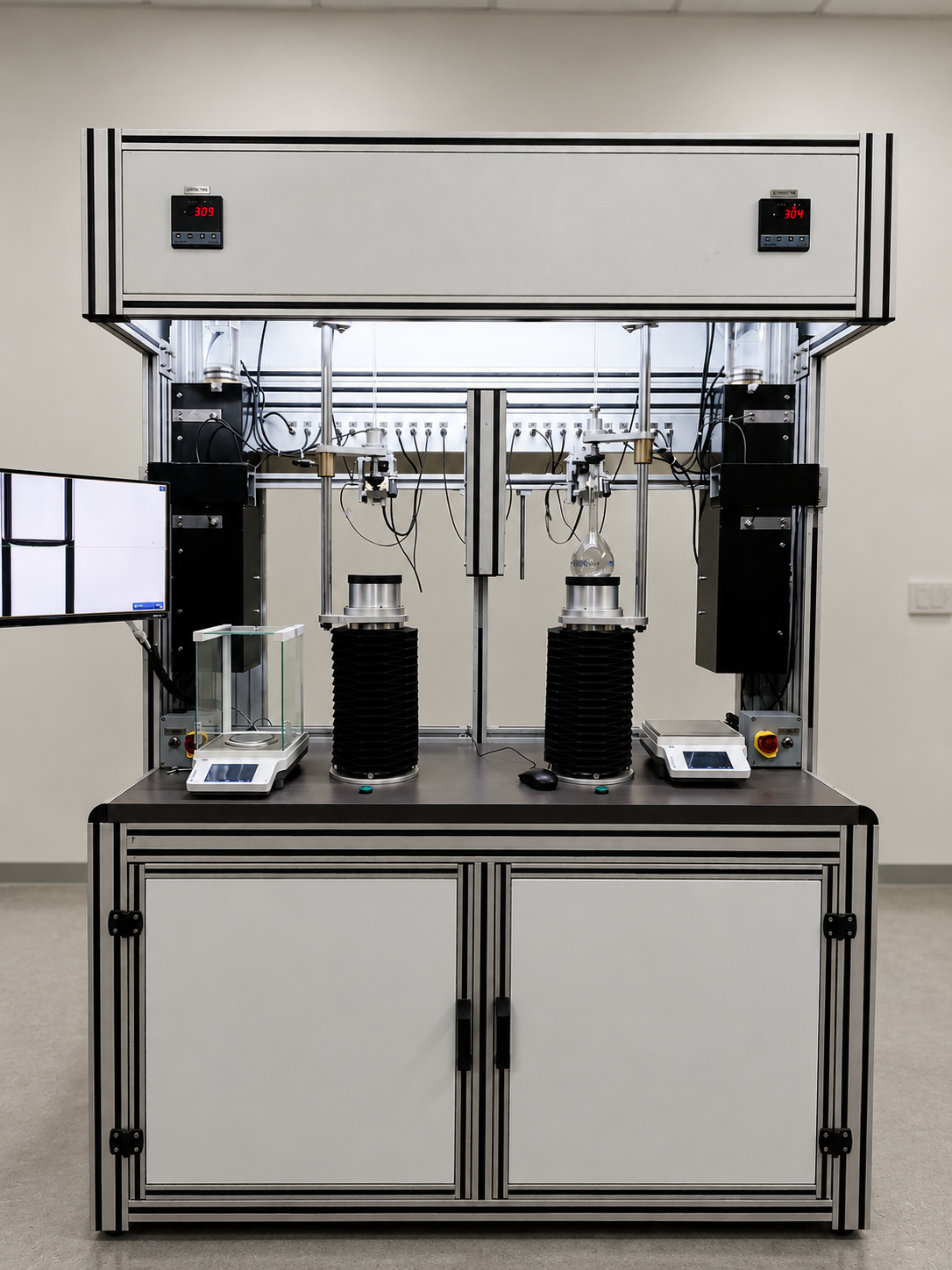

Volumetric Flask Calibration Gen 4

• Computer controlled machine used for calibration of volumetric flasks and measuring cylinders.
• Designed for repeatable class accuracy in production.
• Controlled filling process with operator friendly machine controls.
• Suitable for multiple flask and cylinder ranges as per requirement.
• Marking options can be configured according to production need.

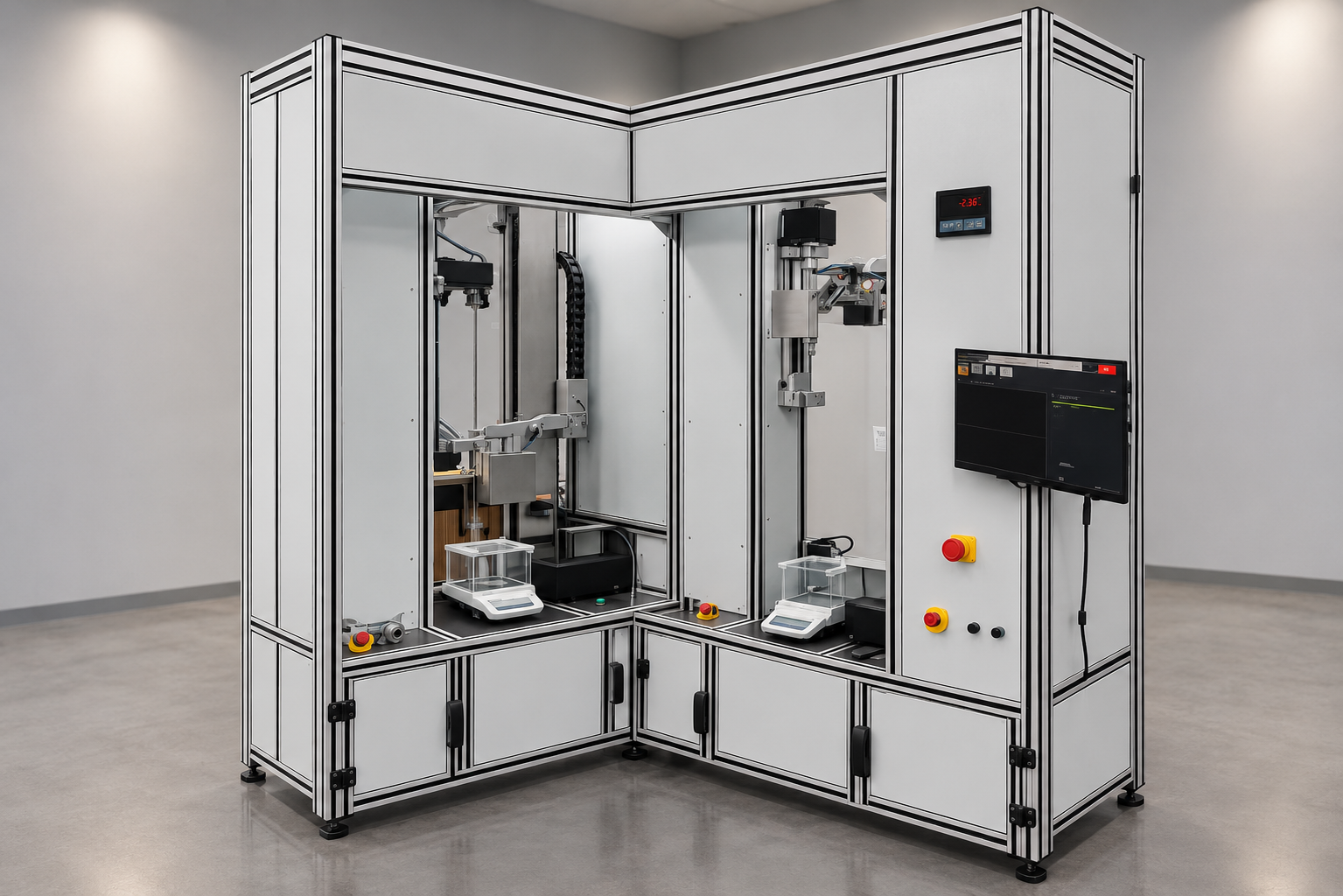

Double Station Burette & Pipette Calibration Machine

• This is computer controlled calibration for measuring pipettes, volumetric pipettes and burette tubes.
• Range of machine will be from 1mL to 100mL (pipette & burette).

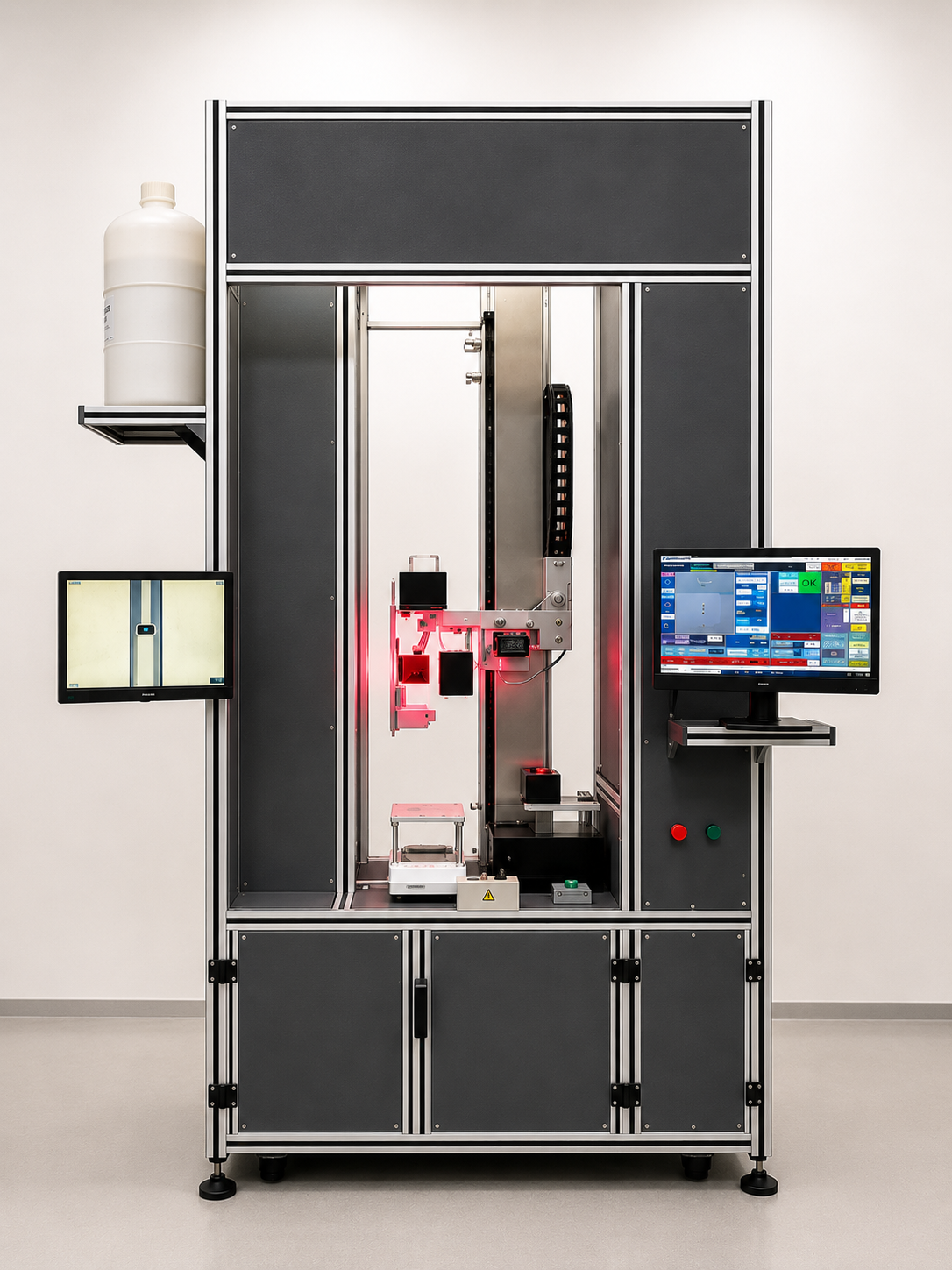

Single Station Burette & Pipette Calibration Machine

• Single station calibration machine for measuring pipettes, volumetric pipettes, and burette tubes.
• Computer controlled filling and calibration process.
• Suitable for production environments requiring repeatable class accuracy.
• Touch screen controls for setup, operation, and process monitoring.
• Machine range and marking system can be customized.

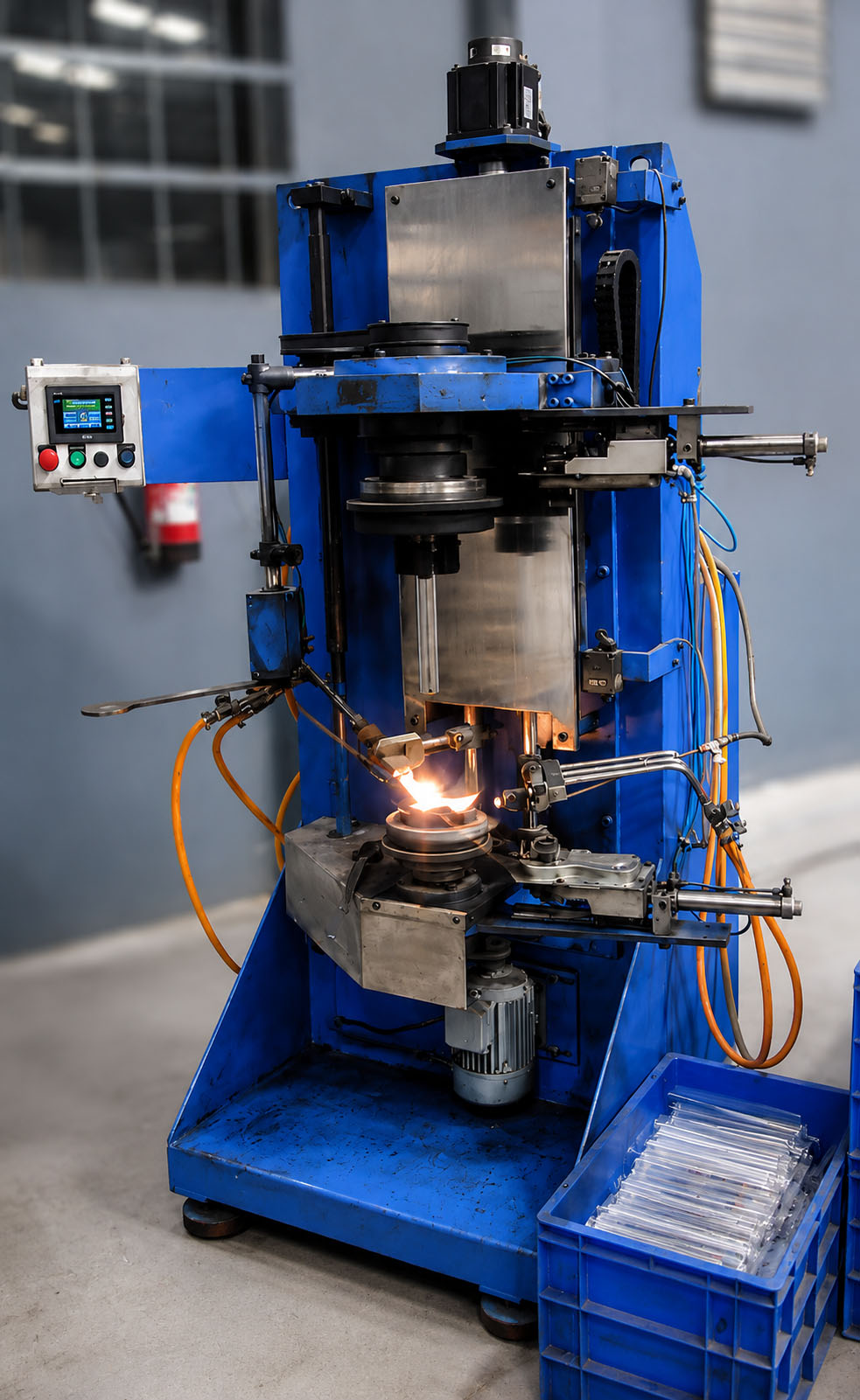

Cylinder Joining Machine

• Machine is used to manufacture Hex & Round Base cylinders.
• It diffuses glass tube and base to make this cylinder.
• Clamping of base & Tube is with auto chucks.
• Its control is given on touch screen.
• This machine reduces the skilled manpower dependency.
• One operator can run 3 machines.
• Machine has 2 different models- 5-250ml & 100-2000ml.

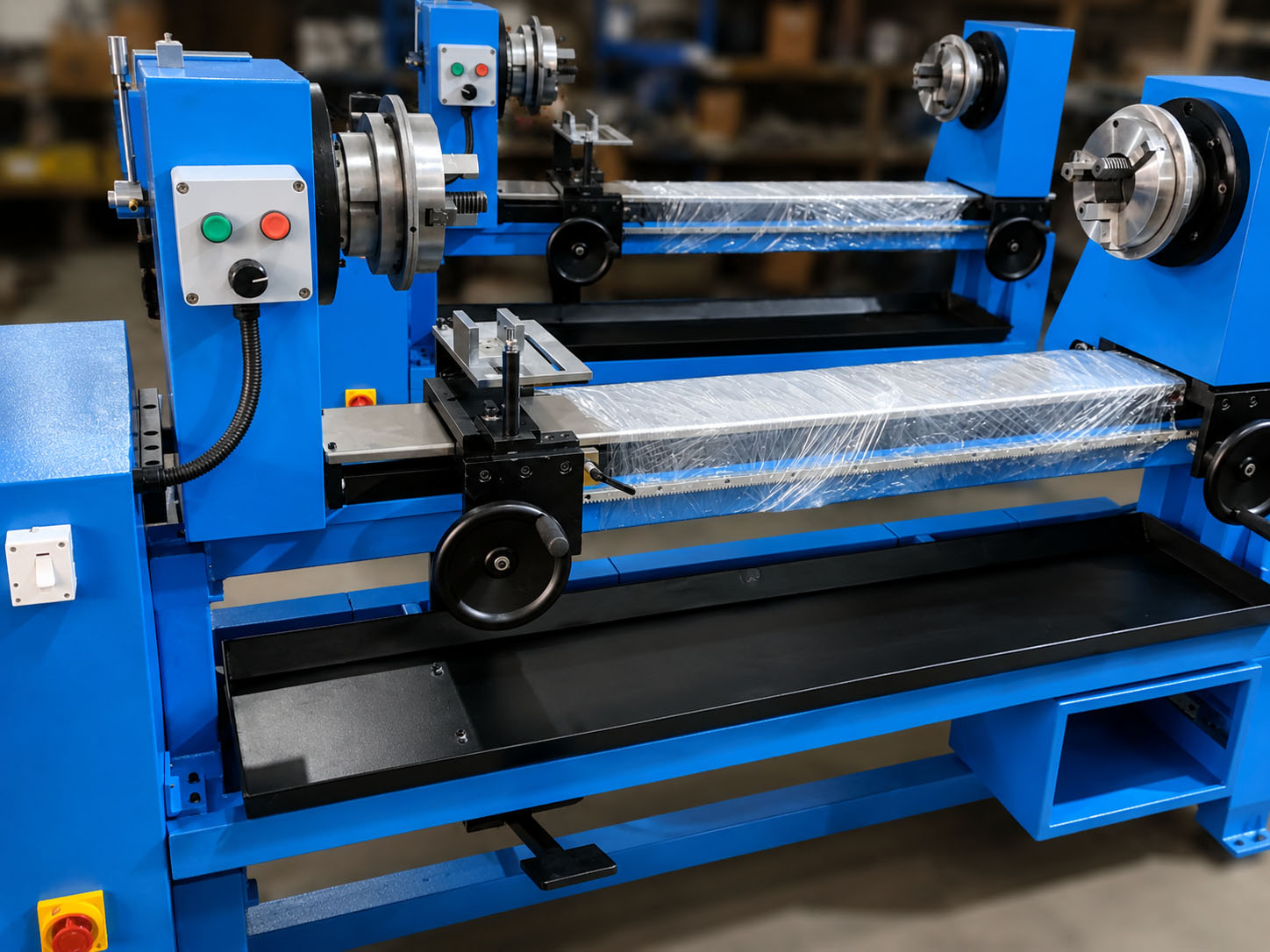

Glass Lathe Machine

• Machine in steel body.
• CNC Guide Rails.
• AC motor with Variable Speed Drive.
• Automatic Burner Low Flame System.
• Fine Rack Pinion for smooth operation.
• Fitted with Zither / Reputed quality chucks.
• Low noise and zero play between two chucks.
• Timing belt driven.
• Easy locking of Middle Die unit.
• All moving parts covered for safety.
• Bed covered with Stainless Steel.

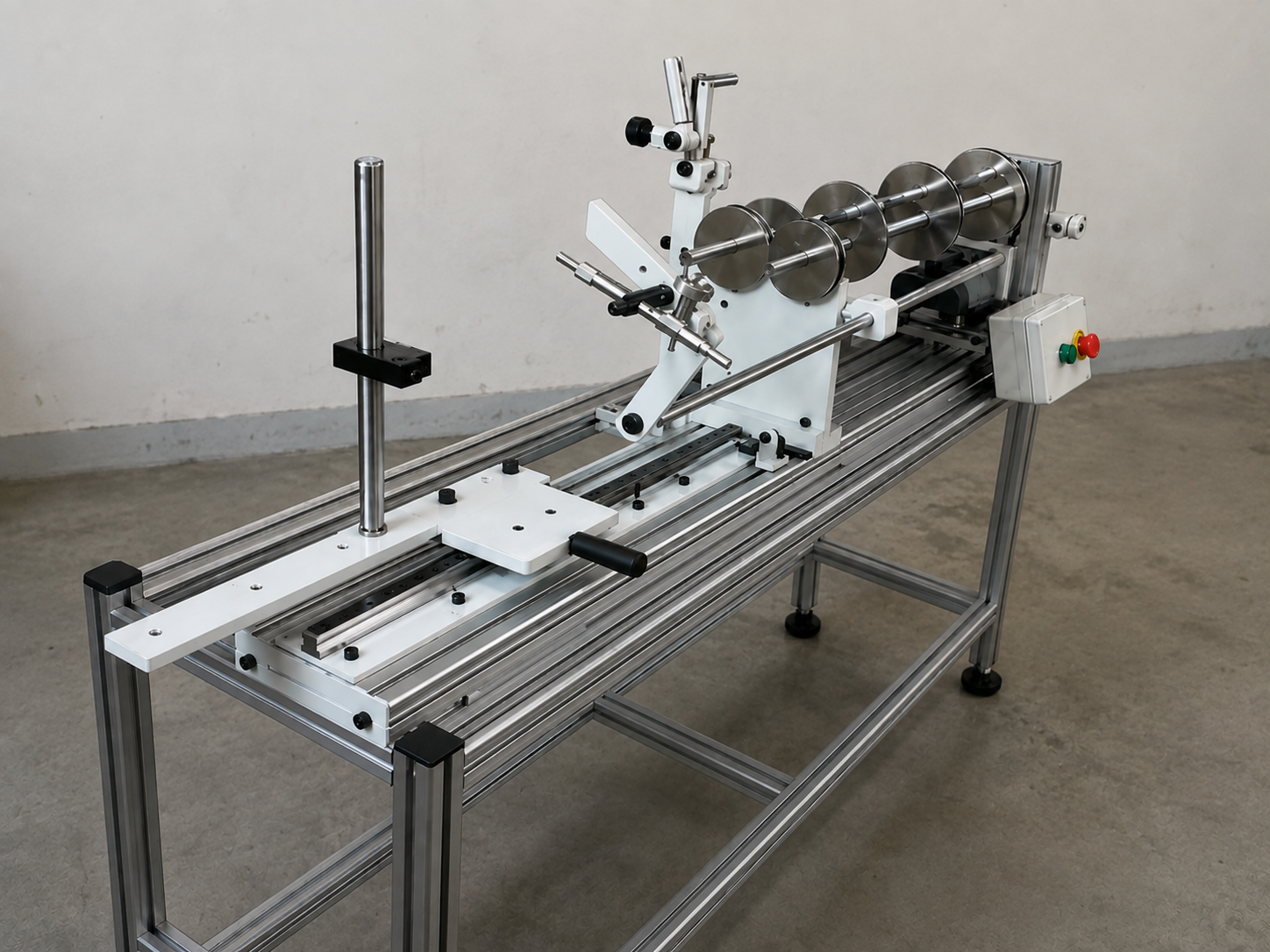

Glass Tube Cutting Machine

Automatic glass tube cutting machine for accurate, repeatable cutting of glass tubes with controlled handling and operator friendly controls.

• Designed for accurate cutting of glass tubes used in laboratory glassware production.
• Supports repeatable cut lengths with stable tube holding during operation.
• Operator friendly controls for setup, operation, and production monitoring.
• Built with safety guarding around moving and cutting areas.
• Suitable for production environments requiring consistent glass tube output.

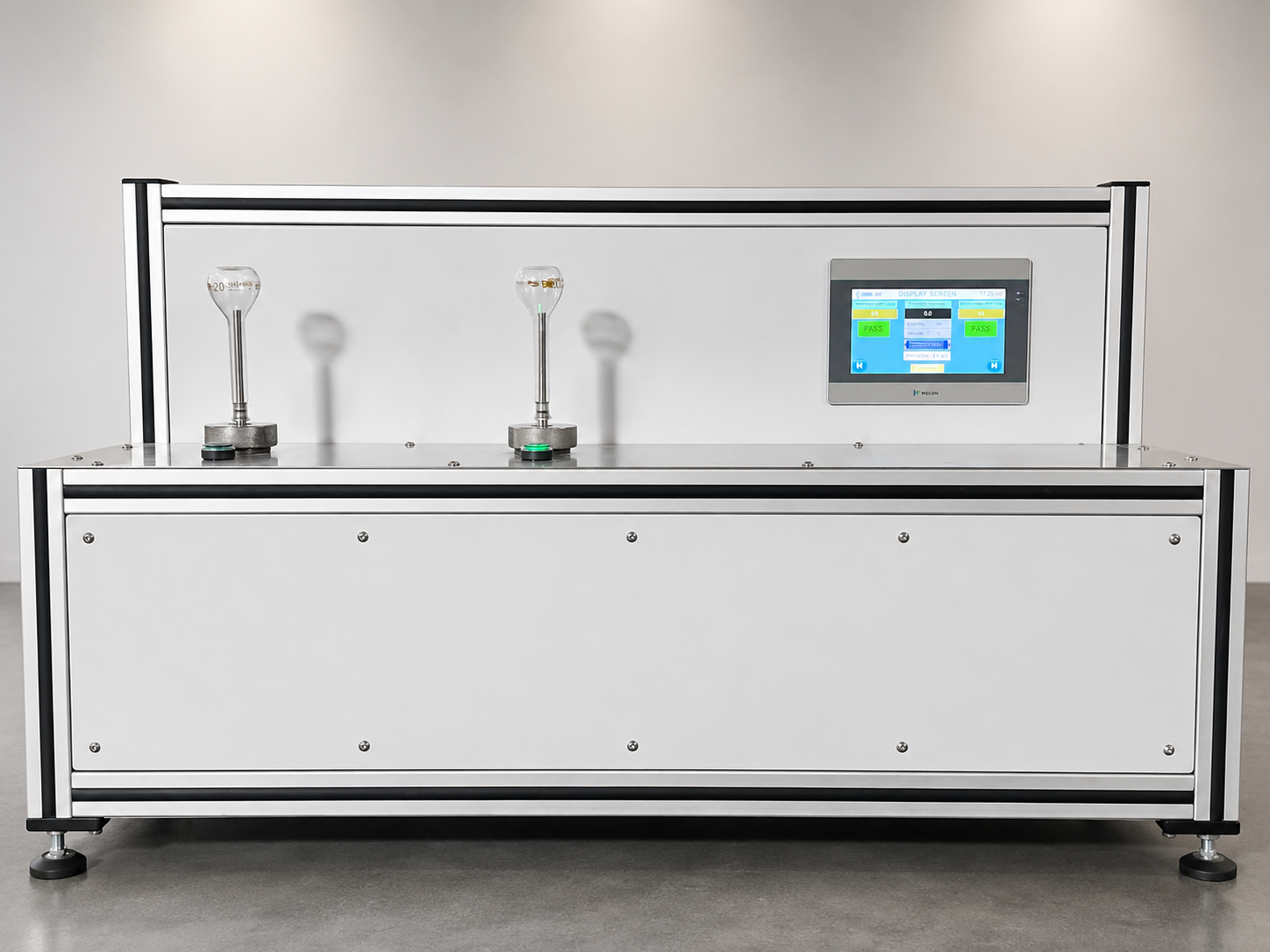

Dry Flask Machine

Dry flask machine for controlled processing of laboratory flasks with consistent handling, compact controls, and repeatable operation.

• Used for dry flask processing in glass labware production.
• Provides controlled machine operation for consistent output quality.
• Compact work area with clear operator access for loading and unloading.
• Touch-screen based controls can be configured as per process requirement.
• Designed to reduce manual dependency and improve process repeatability.

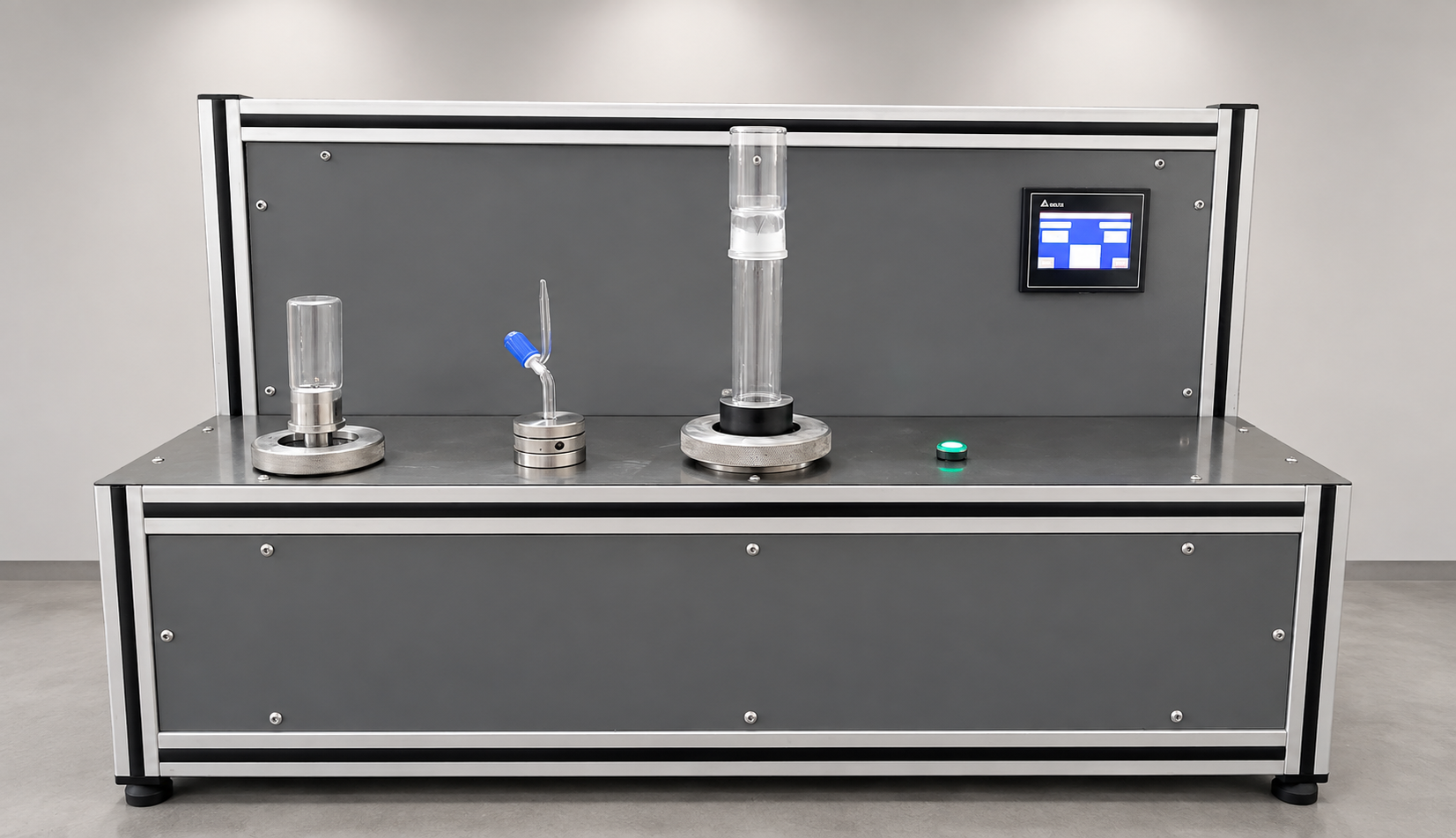

Taper Testing Machine

Taper testing machine for checking glassware taper dimensions with repeatable fixture positioning and simple operator workflow.

• Used for taper inspection and verification in laboratory glassware production.
• Dedicated fixture arrangement helps maintain repeatable component positioning.
• Operator friendly interface for quick checking and process control.
• Designed for stable measurement workflow with reduced manual variation.
• Can be customized around component size and inspection requirement.
