Custom Machines for Assembly, Testing & Process Automation

Mass Heater for Metal Parts Before Rubber Moulding

• Custom heating system designed around the component and process requirement.
• Controlled temperature zones and cycle timing as per application need.
• PLC and HMI based machine control.
• Safety guarding, interlocks, and alarms can be integrated.

Automatic Engraving, Assembly & Inspection Machine

• Combines assembly, engraving or marking, and inspection in one machine.
• Custom fixtures and stations designed around the component sequence.
• Vision, sensor, load, or displacement checks can be integrated.
• Separate OK and NG handling with rejection control.

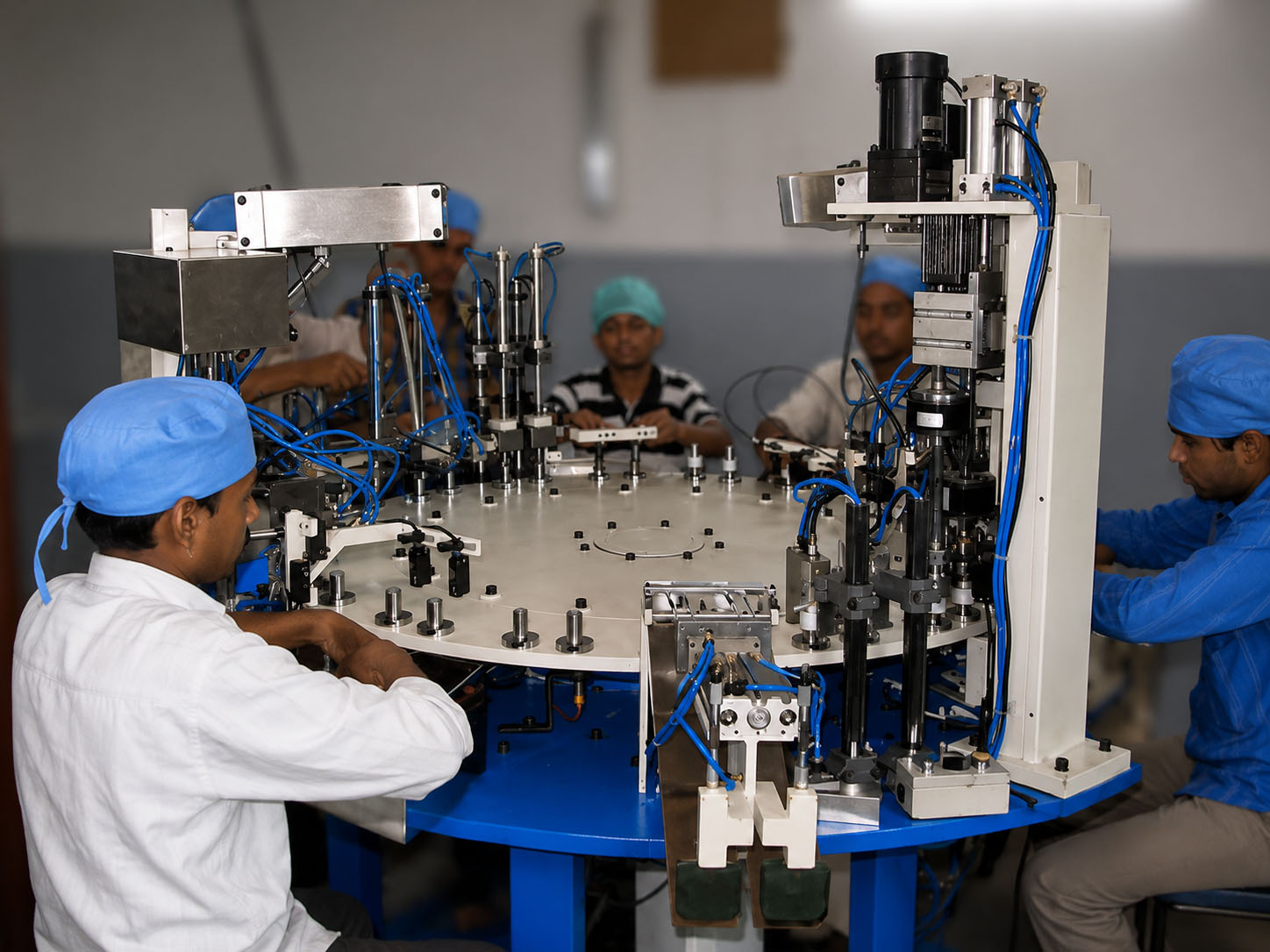

Soap Dispenser Pump Assembly Machine with 18 Station Index

• This machine is used for the automatic assembly of liquid soap dispenser pump.
• Machine has 18 station indexing table.
• Speed of machine is 60pcs/min
• Machine has auto ejection station.
• Machine also detects not OK pcs, and separately drop them in plastic bin.

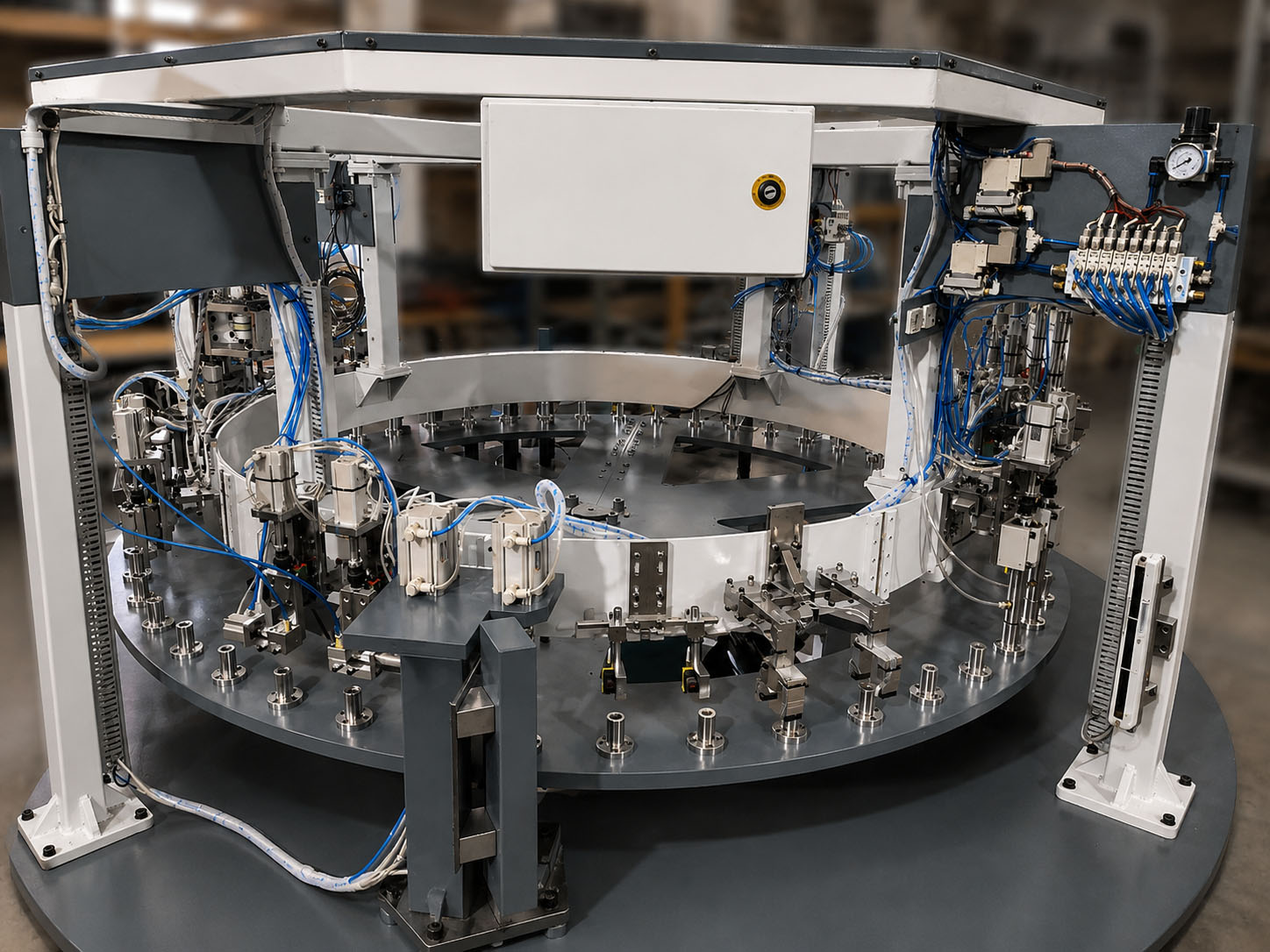

Liquid Soap Dispenser Pump Assembly Machine II

• This machine is used for the automatic assembly of liquid soap dispenser pump.
• Machine has 20 station indexing table.
• Speed of machine is 60pcs/min
• Machine has auto ejection station.
• Machine also detects not OK pcs, and separately drop them in plastic bin.

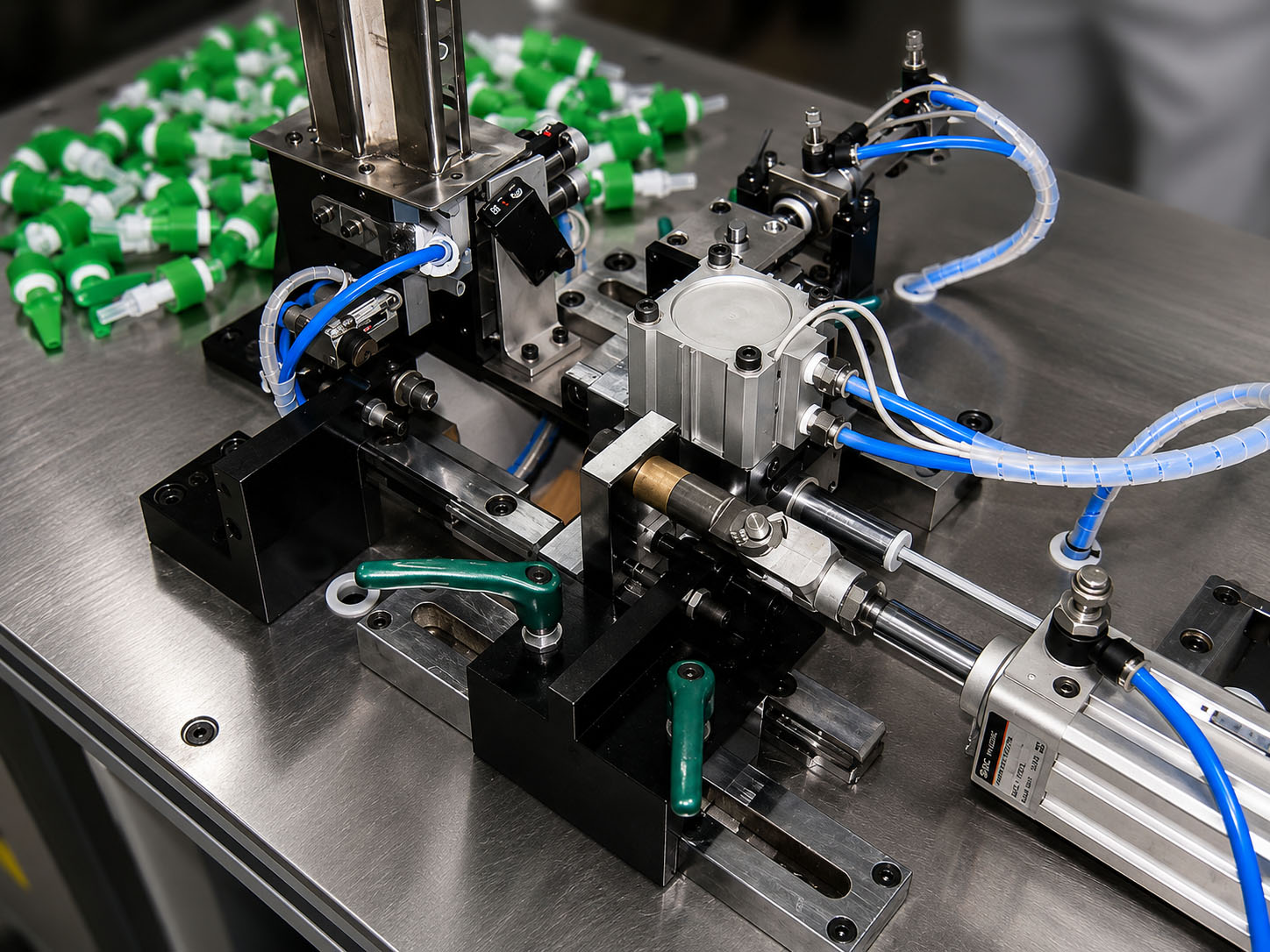

Automatic Dip Tube Assembly Machine

• This machine is used for the assembly of dip tube and soap dispenser pump.
• This machine reduces the skilled manpower dependency.
• Dip tube comes in roll form, machine does the straightening, cutting & then assembly of this tube.
• Speed of machine is 60 pcs/min.

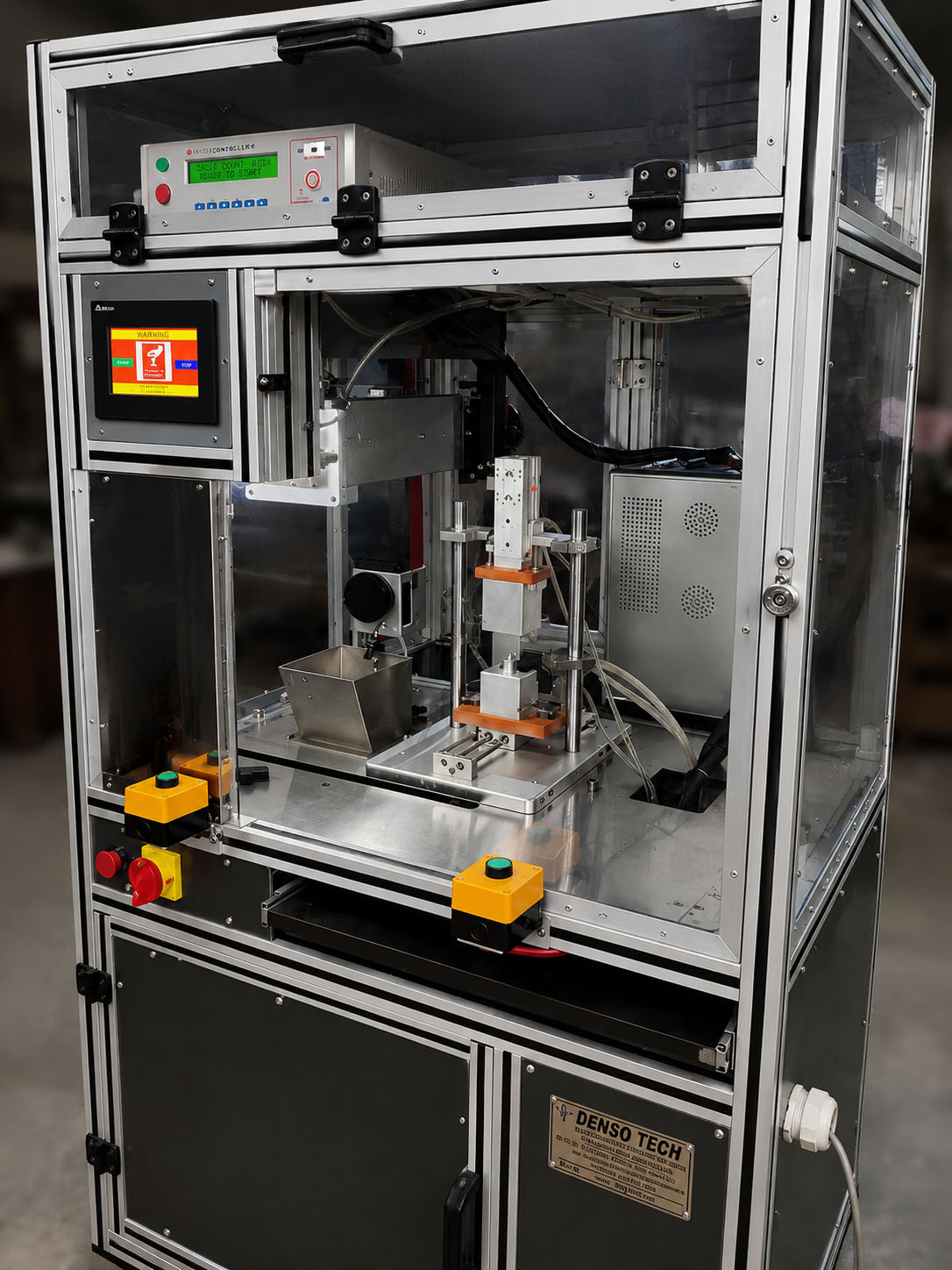

All Out HV, Continuity Testing Machine with Laser Marking

• HV Testing
• Current Testing
• Laser Marking
• Rejection Bin For NG Parts
• Cycle time 4 seconds

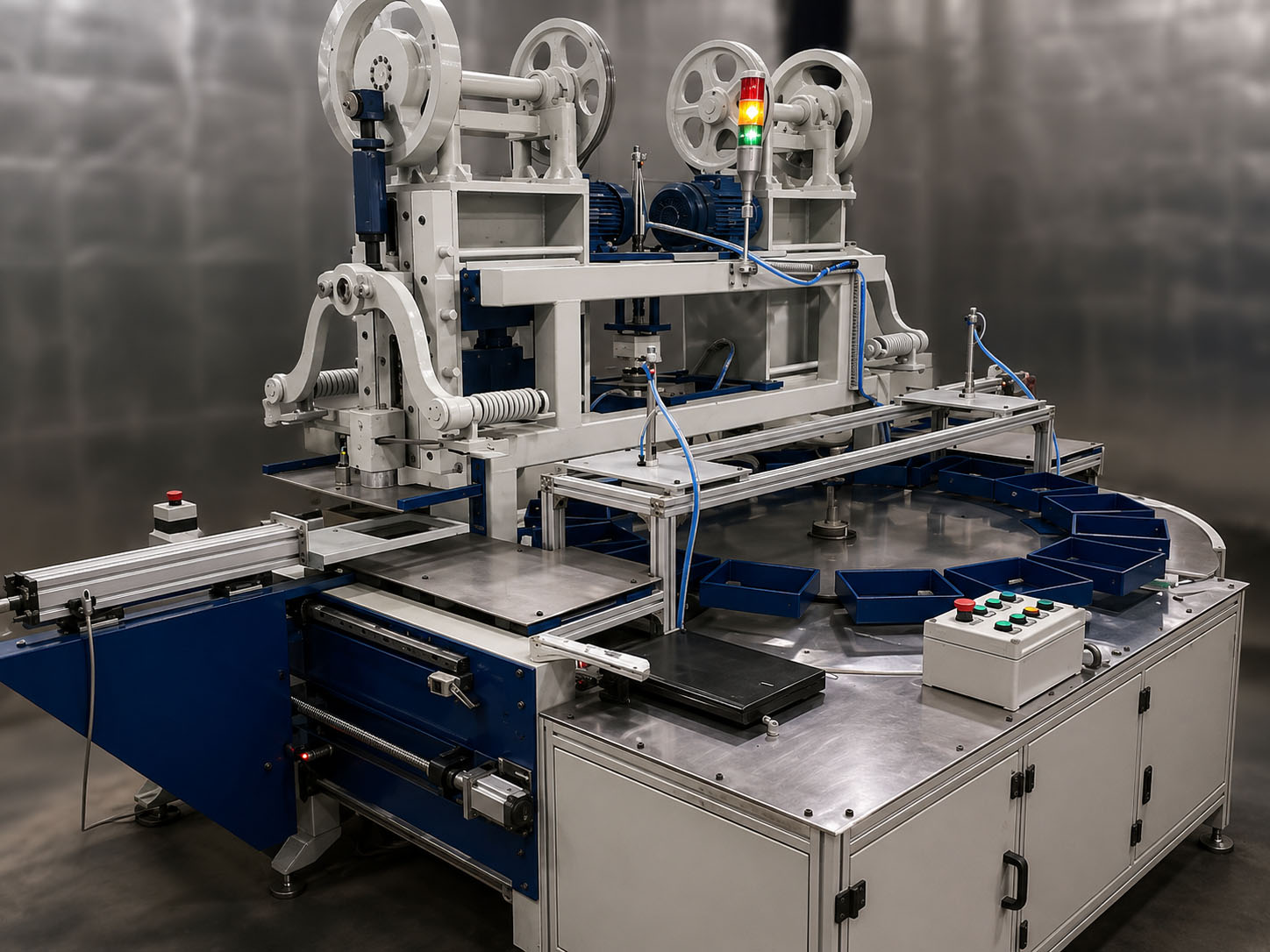

Double Station Silver Vark Manufacturing with 20 Station Indexing Table Having Scada System

• Very fine Silver Vark manufacturing Machine
• 20 Stations Index Table.
• XY Servo Gantry which works in interpolation
• PLC & SCADA Controls.

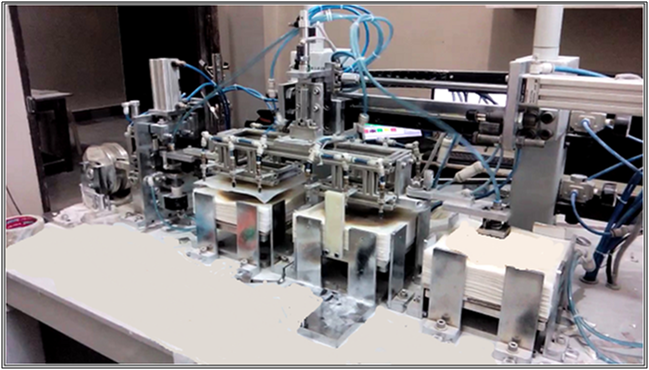

Silver Vark Packet Making Machine

• This machine is making silver vark packets.
• This machine cuts pure sliver strip which comes in roll form.
• Then it does the pick and place on paper.
• This is double station machine.
• Control of machine is given on touch screen.

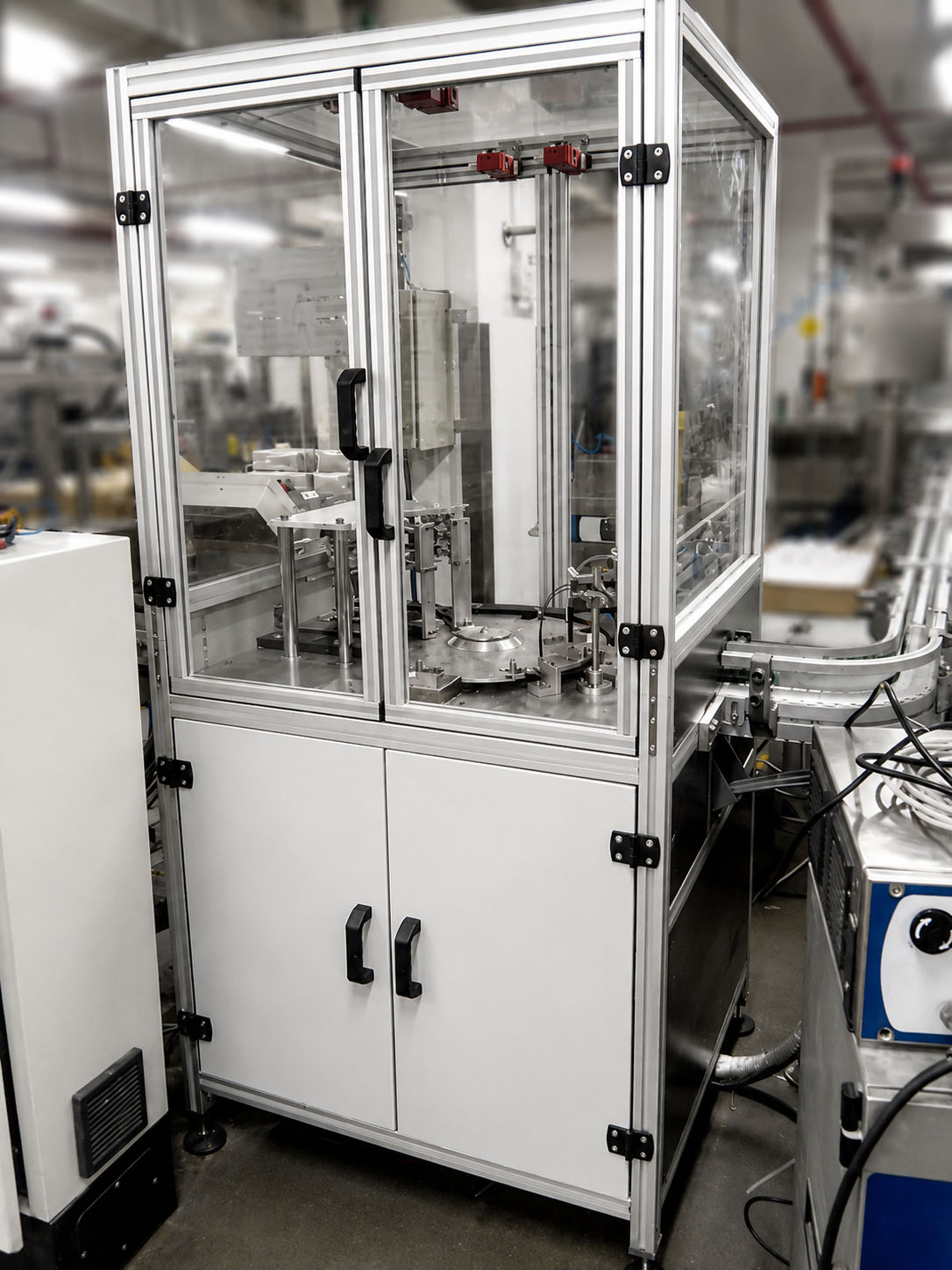

Loreal Hair Color Cap Detection & Laser Printing Machine

• This machine does cap detection & laser printing of hair color bottle.
• Machine has 8 station indexing dial plate.
• Machine has been installed in online production line.
• Its control is given on touch screen
• It also separates not ok pcs.
• Speed of machine is 60pcs/min.

Extension Board Testing Machine

Product image and title copied from the source catalogue.

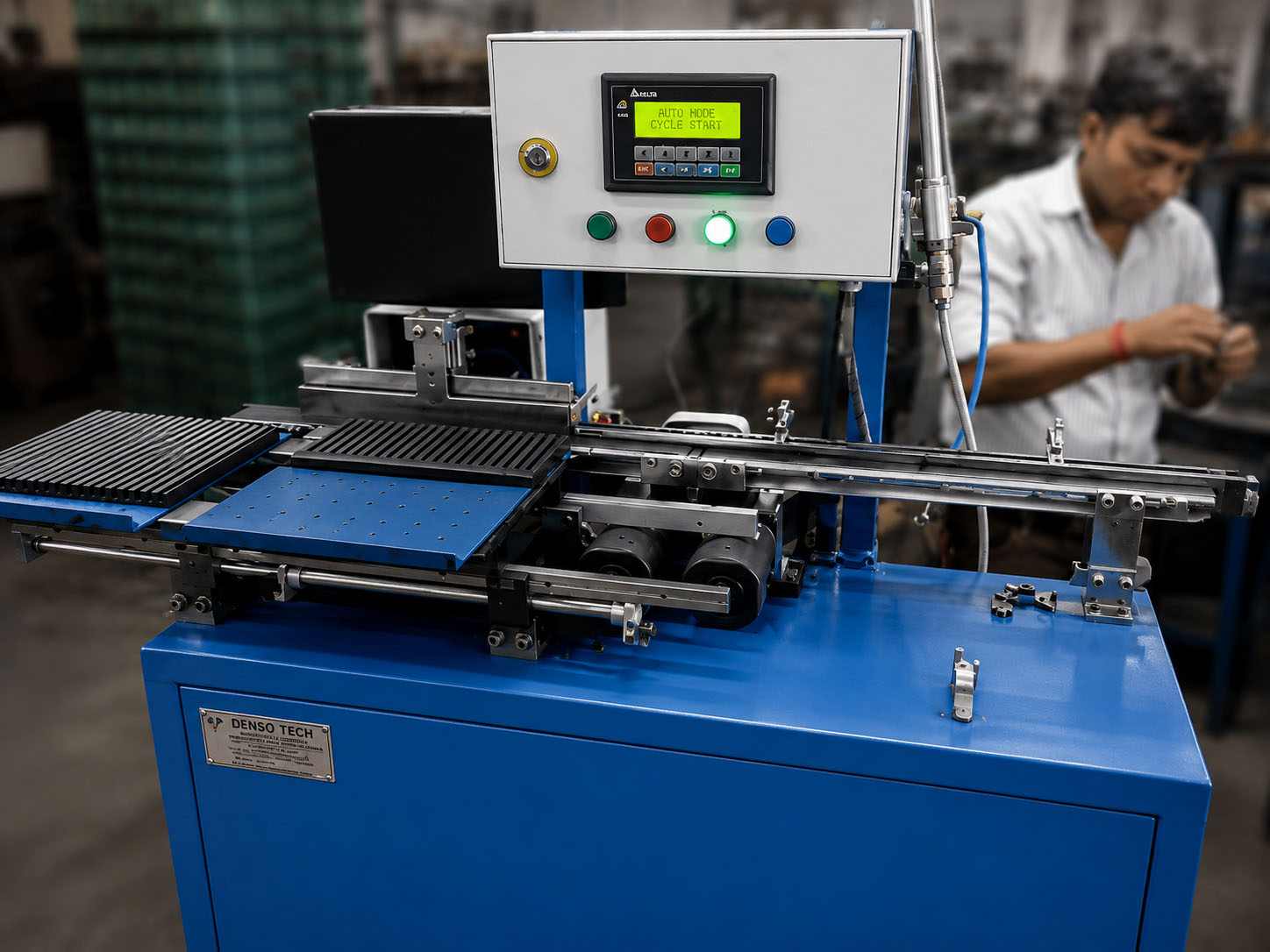

FERRITE CORE ALIGNING MACHINE

• This machine is used for auto aligning of ferrite core in matrix form.
• This machine is installed in online production line directly.
• Its movements are controlled by servo motors.

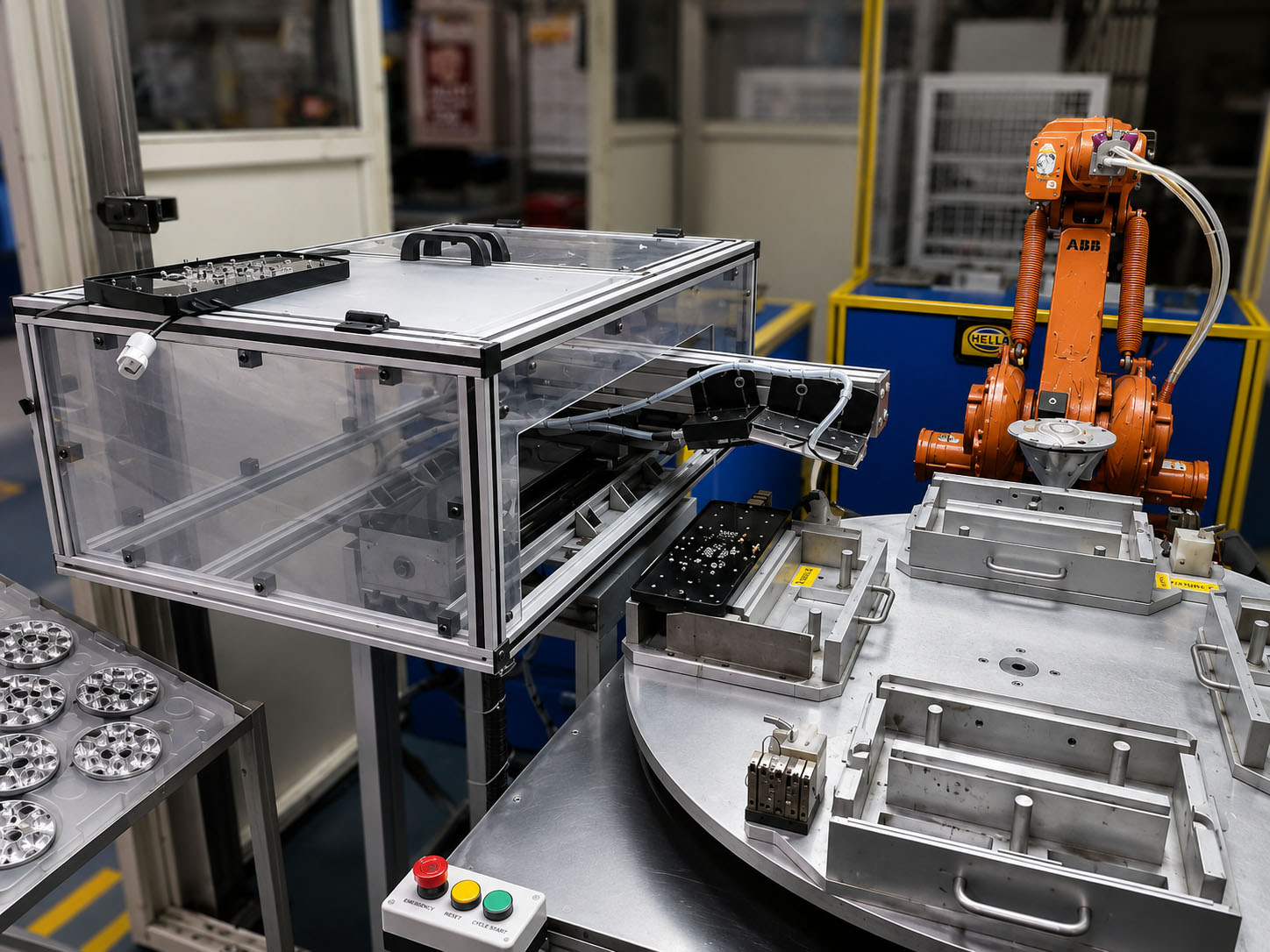

X-Y Gantry for Head Lamp Production Line

• This is 2 Axis servo gantry.
• It is installed in headlamp production line.
• It reduced the manpower directly from machine.

FAN BLADE ANGLE TESTING MACHINE

• Loader is used for loading of 8x4 feet sheets on to CNC Turret punching machine.
• This is fully automatic loader, which also ejects finished pc from CNC machine and separately stacks it.
• Stock of sheets is stored below the loader machine table with fork lifter.
• Single operator can run multiple loaders cause once production schedule is fed in machine touch screen, it will automatically does loading & unloading.

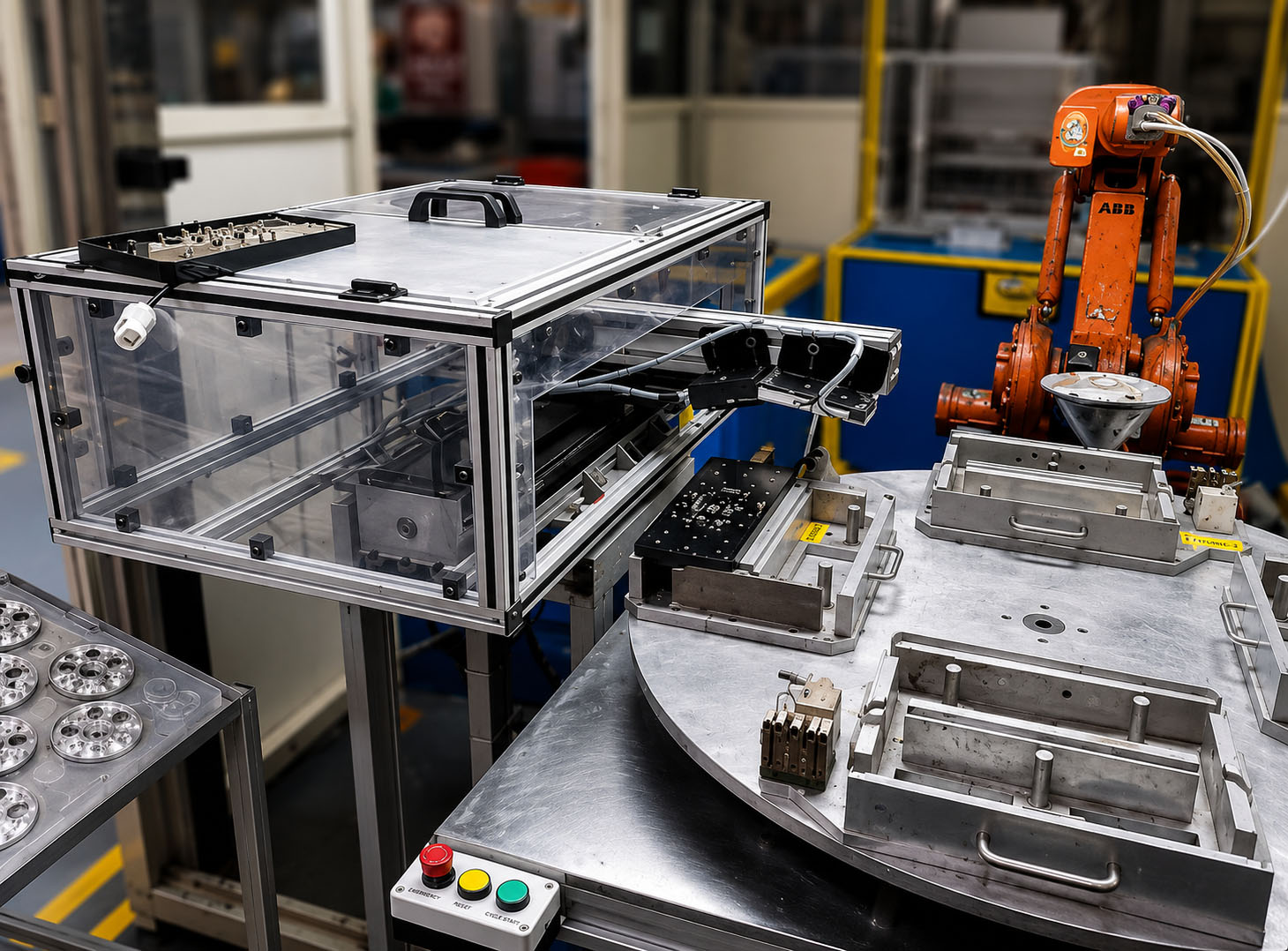

HEAD LAMP GLUING MACHINE

• Head Lamp Gluing in any profile.
• Vision System Integrated.
• XY Servo Gantry.

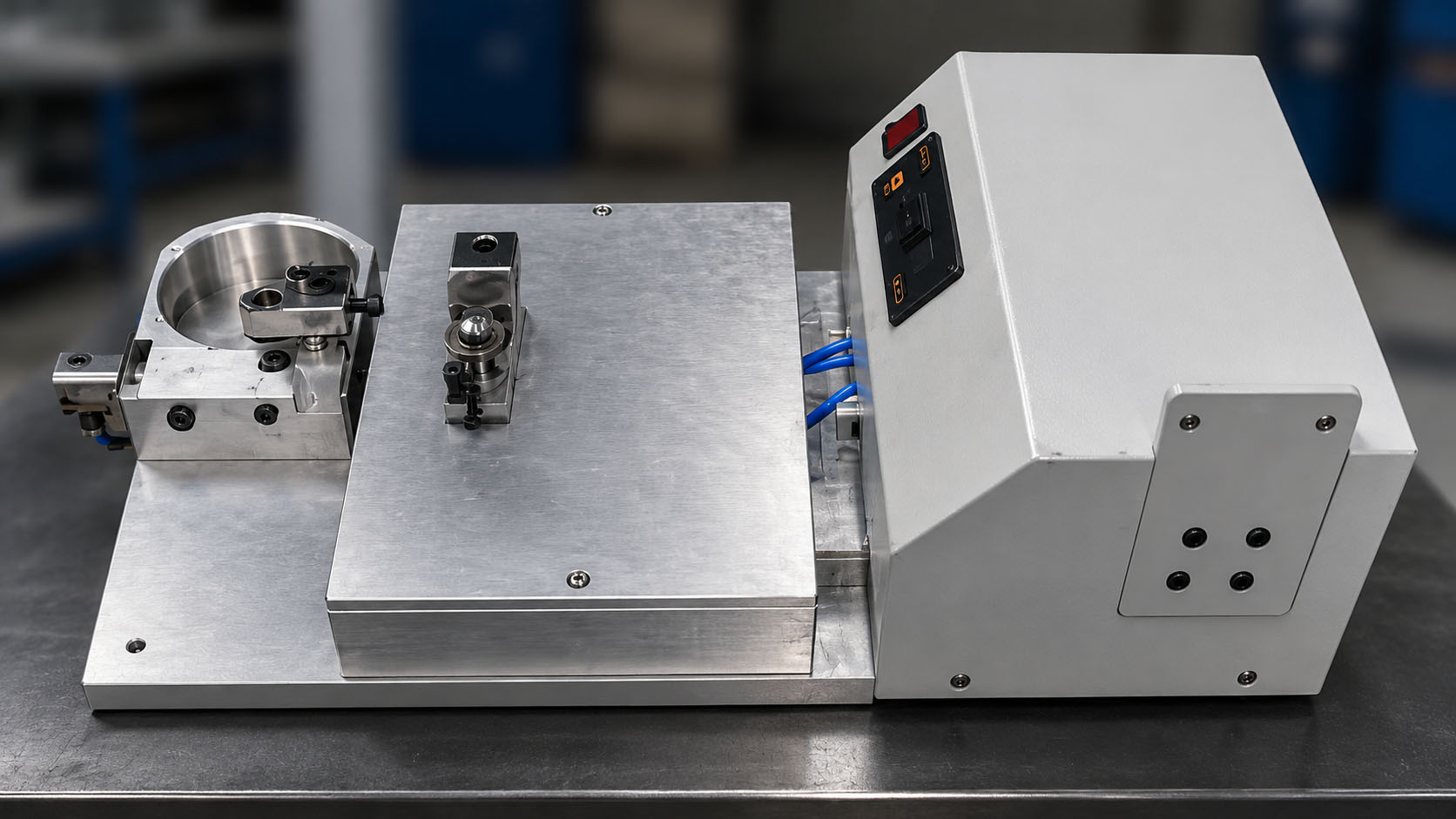

CROWN & STEM CUTTING ASSEMBLY MACHINE FOR TITAN

• This machine is used for stem & crown assembly of wrist watch.
• It is very precise machine, first it cuts the desired length of stem.
• Then it does the assembly of stem with crown.

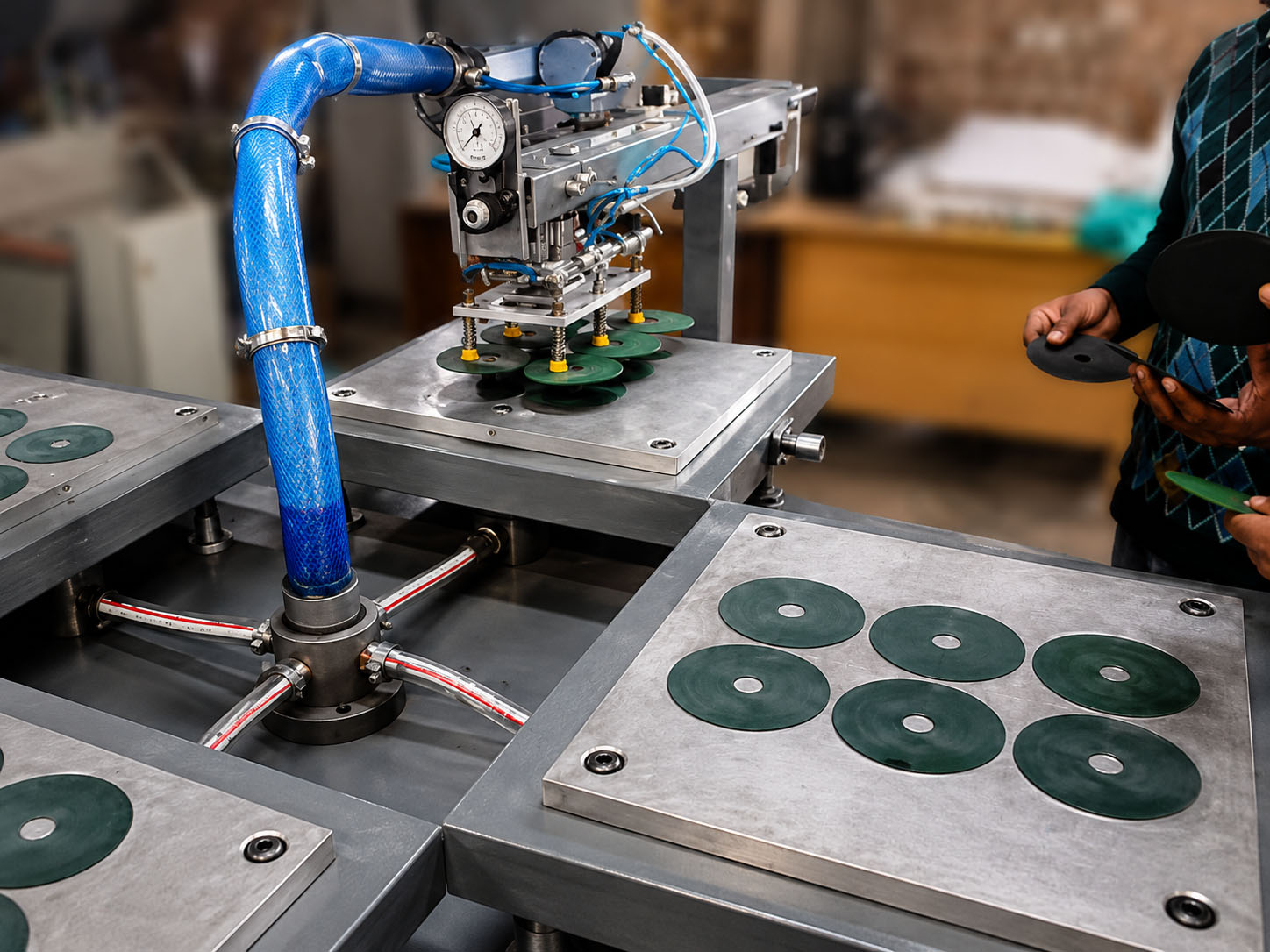

SCREEN PRINTING MACHINE WITH 4 STATION INDEX & AUTO EJECTION SYSTEM

• This machine is used for doing screen printing on Norton Grindwell discs.
• This Machine grips disc on table with vacuum system.
• Printing is done automatically with the screen printing machine.
• Vacuum grippers pick the printed disc and place it on conveyor, which does the drying process.
• Machine has 4 Station indexing table.
• Speed of Machine is 60pcs/min.

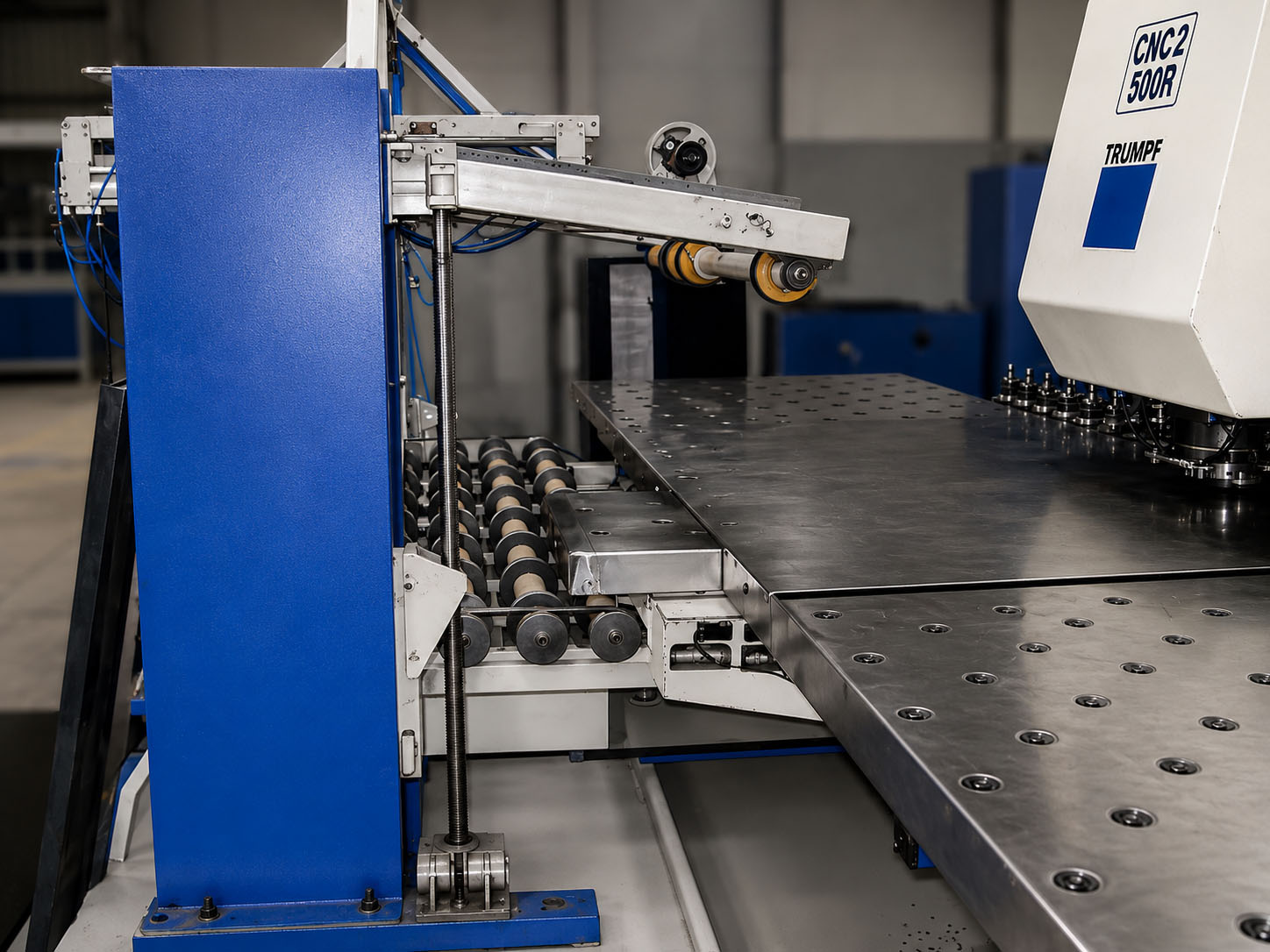

CNC LOADER FOR TURRET PUNCHING MACHINE

• Machine is used to test angle and swivel of ceiling fan blade.
• Setting of machine is done with the help of masterpiece.
• Semi skilled operator can run this machine.
• Movements has been controlled with servo motors.
• Cycle time of machine is 3 sec.

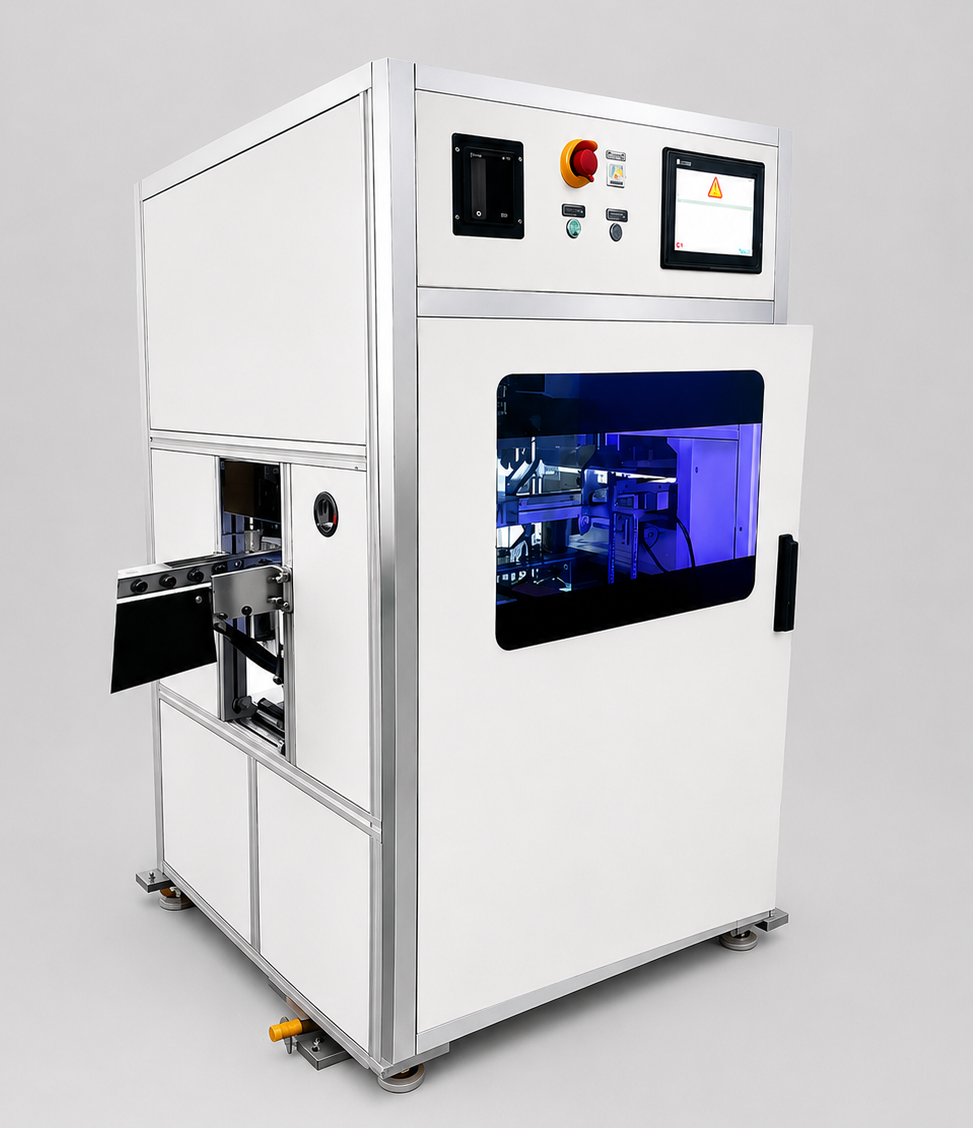

PCB Testing Machine

• Automatic PCB loading and unloading conveyor.
• Automatic electrical testing with open- and short-circuit detection.
• Recipe-based parameters and real-time test results.
• High-speed cycle with production counter and data logging.
• Safety interlocks, mechanical safety lock, and operator protection.
